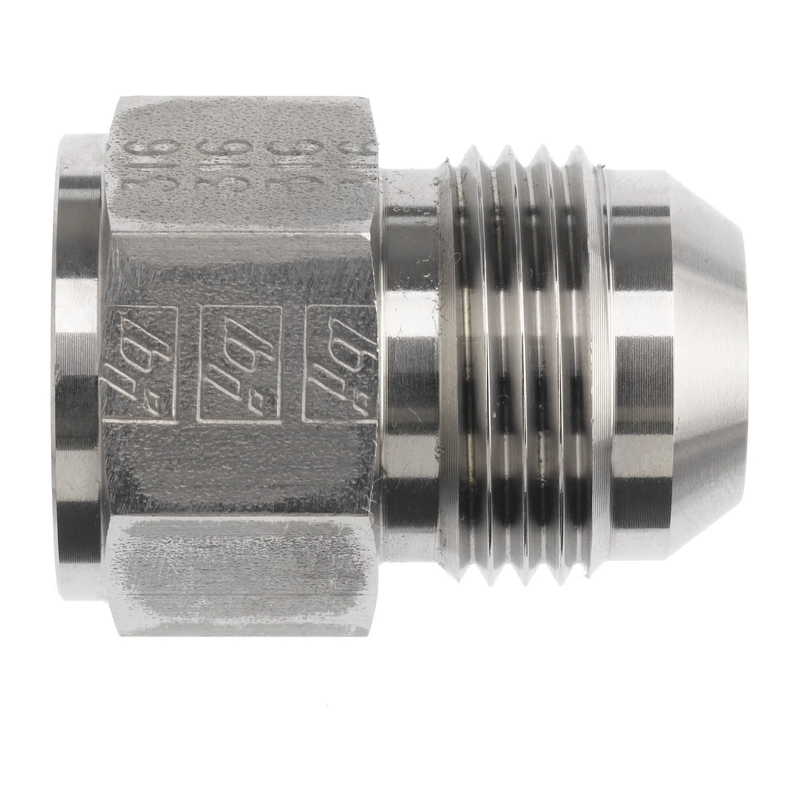

The Brennan 2406-20-16 straight hydraulic fitting is designed for reliable and leak-free fluid connections. Featuring a 1-1/4" FJIC female 37° flare on one end and a 1" MJIC male 37° flare on the other, it ensures precise alignment and secure sealing in high-pressure hydraulic systems. Constructed from durable straight steel with corrosion-resistant Cr3 plating, this fitting is engineered for long-term performance. Ideal for industrial, mobile, and fluid power applications requiring dependable, high-pressure connections. Manufactured to meet SAE J514 standards for consistency and safety.
Fitting Chart- Straight connector: 1-1/4" FJIC (Female) x 1" MJIC (Male) 37° flare
- High-strength steel construction with Cr3 corrosion-resistant plating
- Compact 2" length for easy integration in tight spaces
- Meets SAE J514 specifications for reliable performance
- Ideal for hydraulic, pneumatic, and industrial high-pressure systems
- Provides leak-proof connections for demanding fluid applications
| Thread B1 Type | Female JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 2 |
| Overall Length L In | 2 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.74 |
| California Residents | Prop-65 Warning |
