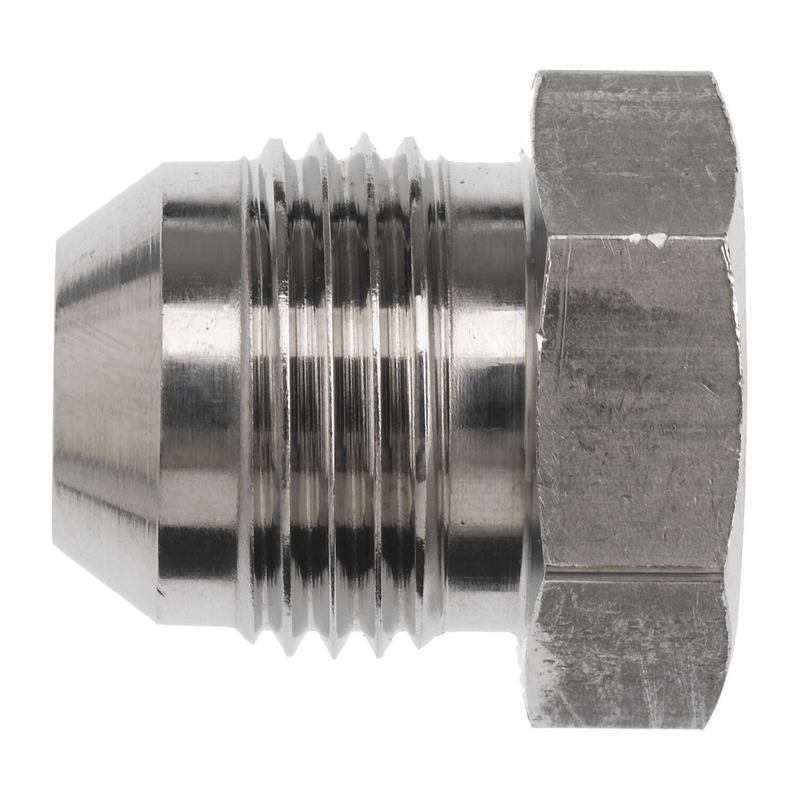

The Brennan 2408-04-SS is a high-quality stainless steel hydraulic plug designed for sealing 1/4" JIC hydraulic ports. Engineered for high-pressure applications up to 7500 PSI, this plug ensures a secure, leak-free connection in hydraulic systems. Its compact, straight design with a hex head allows for easy installation using standard tools. Made from durable stainless steel, it resists corrosion and delivers long-lasting performance even in demanding environments. Ideal for industrial, automotive, and fluid transfer applications, this plug combines strength, reliability, and ease of use.
Fitting Chart- High-pressure rated up to 7,500 PSI for reliable sealing
- Constructed from stainless steel for corrosion resistance
- Compact straight design for installation in tight hydraulic systems
- Features a hex head for easy tightening and removal
- Suitable for industrial, automotive, and fluid transfer systems
- Lightweight yet strong, ensuring long-lasting performance
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Body Hex In | 0.5 |
| Overall Length L In | 0.8 |
| Overall Length L2 In | 0.22 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.04 |
| Maximum Dynamic Pressure Psi | 7500 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.2 |
