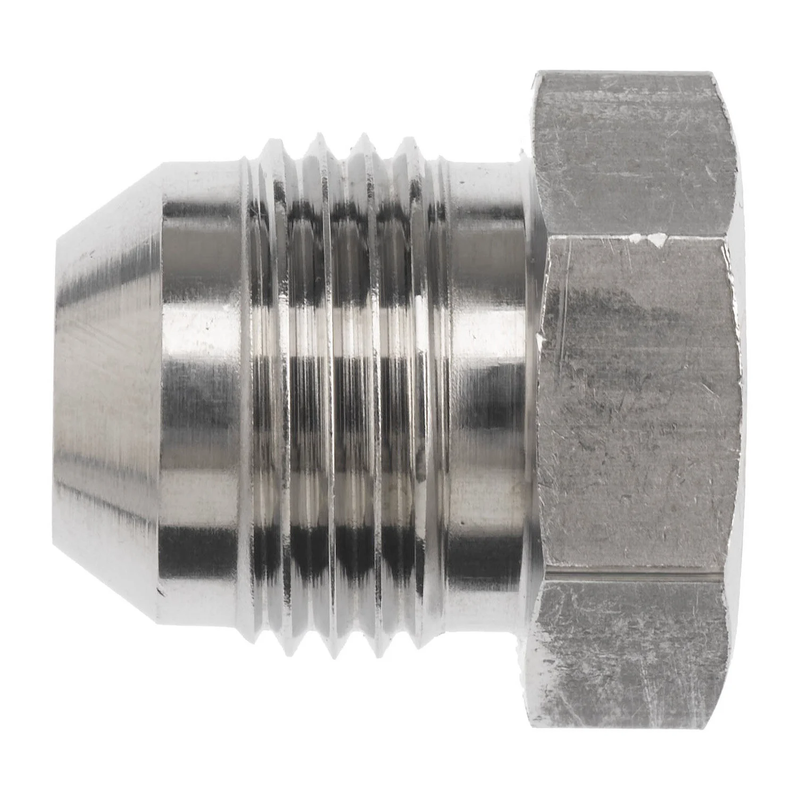

The Brennan Industries #6 MJIC Plug is engineered to effectively seal hydraulic ports with precision and durability. Made from high-strength steel and protected by Cr3 plating, this plug uses a 7/16-20 Male JIC SAE 37 Flare thread for a secure fit. Compact and reliable, it is ideal for high-pressure systems up to 7500 PSI where unused ports need to be safely blocked.
- Durable steel body with corrosion-resistant Cr3 plating
- 7/16-20 Male JIC SAE 37 Flare thread
- Designed for sealing and blocking hydraulic connections
- Rated for high-pressure applications up to 7500 PSI
- Compact size: 0.8" overall length and 0.5" body hex
- Meets SAE J514 standards
- California Prop-65 compliant
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 in. |
| Thread B1 Specification | SAE J514 |
| Body Hex in. | 0.5 |
| Overall Length L in. | 0.8 |
| Overall Length L2 in. | 0.22 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.0281 |
| Maximum Dynamic Pressure psi | 7500 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.2 |
