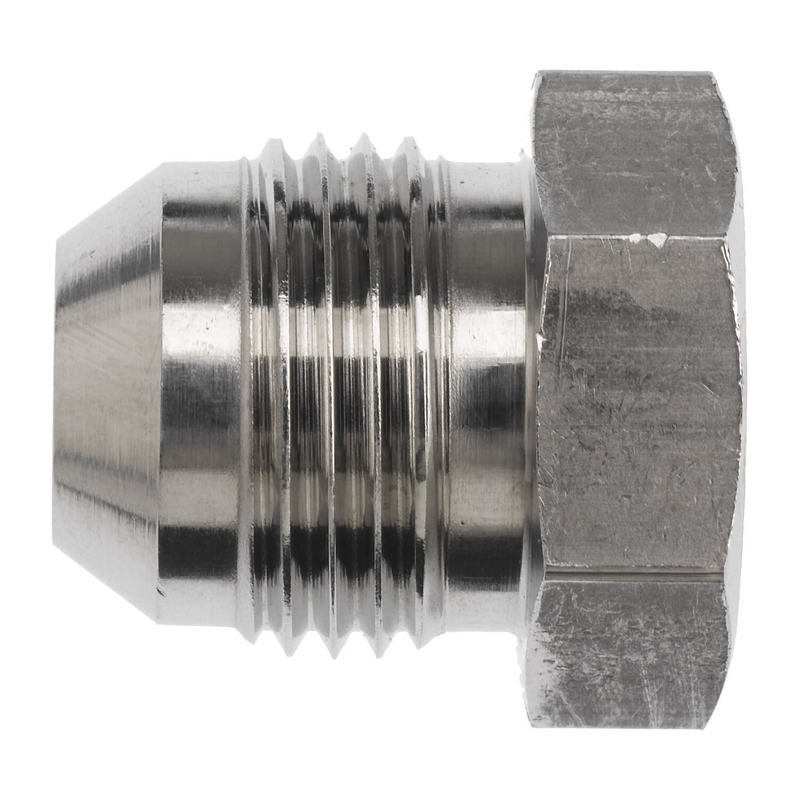

The Brennan 2408-06-SS is a premium stainless steel hydraulic plug designed for sealing 3/8" JIC hydraulic ports. It is engineered to handle pressures up to 6000 PSI, ensuring a secure, leak-free connection in hydraulic systems. The plug's straight design with a hex head allows for easy installation and removal using standard tools. Crafted from durable stainless steel, it resists corrosion and provides long-lasting performance in demanding industrial and automotive applications. Compact and lightweight, it is ideal for hydraulic fluid control and sealing applications.
Fitting Chart- Rated for high-pressure use up to 6,000 PSI
- Made from stainless steel for excellent corrosion resistance
- Straight body design for easy installation in tight spaces
- Equipped with a hex head for quick tightening and removal
- Suitable for industrial, automotive, and fluid transfer systems
- Lightweight yet strong, ensuring reliable, long-term performance
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Body Hex In | 0.625 |
| Overall Length L In | 0.84 |
| Overall Length L2 In | 0.284 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.06 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.328 |
