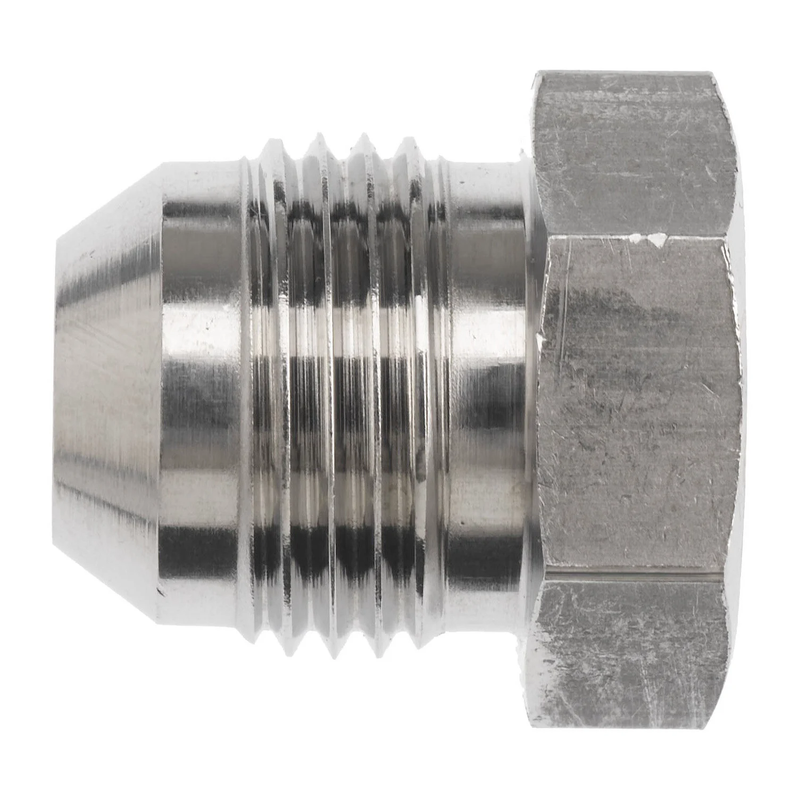

The Brennan Industries #8 MJIC Plug is designed to securely seal hydraulic ports in demanding fluid power systems. Crafted from durable steel with corrosion-resistant Cr3 plating, it features a 3/4-16 Male JIC SAE 37 Flare thread for a tight, leak-proof fit. Compact and reliable, this plug withstands pressures up to 6000 PSI, making it ideal for safely blocking unused hydraulic connections.
- Heavy-duty steel construction with Cr3 corrosion-resistant plating
- 3/4-16 Male JIC SAE 37 Flare thread
- Suitable for sealing and blocking hydraulic ports
- Maximum dynamic pressure rating of 6000 PSI
- Compact design with 0.94" overall length and 0.812" body hex
- Compliant with SAE J514 specifications
- Includes California Prop-65 warning
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 3/4-16 |
Thread B1 Drill In | 0.391 in. |
Thread B1 Specification | SAE J514 |
Body Hex in. | 0.812 |
Overall Length L in. | 0.94 |
Overall Length L2 in. | 0.25 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight lbs | 0.0869 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 0.62 |
