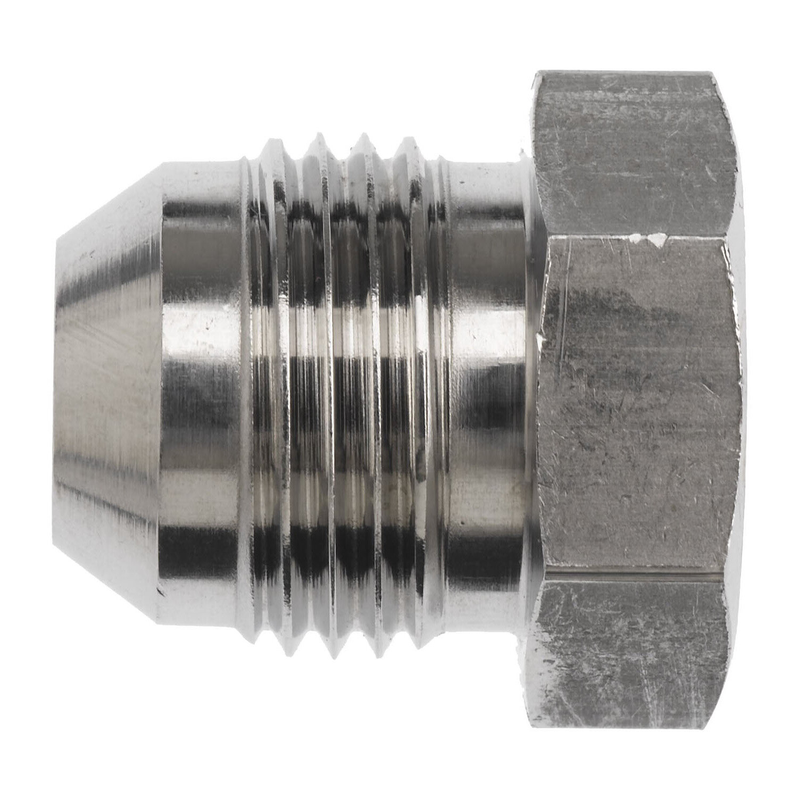

The Brennan 2408-08-SS is a high-quality stainless steel hydraulic plug designed for sealing 1/2" JIC hydraulic ports. Built to withstand pressures up to 6000 PSI, it ensures a secure and leak-free connection in hydraulic systems. The plug features a straight design with a hex head, allowing for quick installation and removal with standard tools. Its stainless steel construction offers excellent corrosion resistance, making it suitable for demanding industrial, automotive, and fluid transfer applications. Compact and reliable, it provides long-lasting performance in hydraulic setups.
Fitting Chart- Designed for secure sealing of 1/2" JIC hydraulic ports, preventing leaks and maintaining system integrity
- Constructed from high-quality stainless steel for excellent corrosion resistance and long-lasting durability
- Straight body with hex head allows easy installation and removal using standard tools
- Withstands high-pressure hydraulic systems up to 6,000 PSI, suitable for industrial and automotive applications
- Compact and precise design ensures reliable performance even in demanding conditions
- Ideal for fluid transfer, hydraulic maintenance, and system assembly, providing a dependable solution for engineers and technicians
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Body Hex In | 0.812 |
| Overall Length L In | 0.94 |
| Overall Length L2 In | 0.25 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.12 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.62 |
