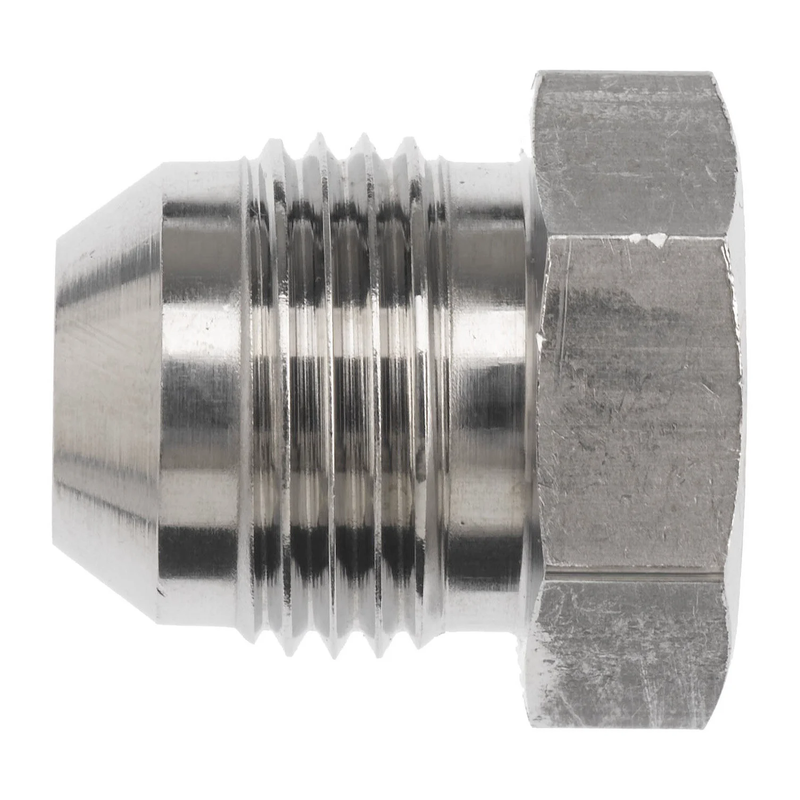

The Brennan Industries #10 MJIC Plug provides a reliable seal for hydraulic ports in various industrial applications. Made from robust steel and coated with corrosion-resistant Cr3 plating, this plug features a 7/8-14 Male JIC SAE 37 Flare thread. It offers secure and leak-free blocking for hydraulic systems with a pressure rating up to 5000 PSI.
- Steel body with Cr3 corrosion-resistant plating
- 7/8-14 Male JIC SAE 37 Flare thread for precise sealing
- Designed for blocking unused hydraulic ports
- Maximum dynamic pressure of 5000 PSI
- Compact dimensions: 1.1" overall length and 0.938" body hex
- Meets SAE J514 specifications
- California Prop-65 warning included
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/8-14 |
Thread B1 Drill In | 0.484 in. |
Thread B1 Specification | SAE J514 |
Body Hex in. | 0.938 |
Overall Length L in. | 1.1 |
Overall Length L2 in. | 0.31 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight lbs | 0.1333 |
Maximum Dynamic Pressure psi | 5000 |
California Residents | Prop-65 Warning |
