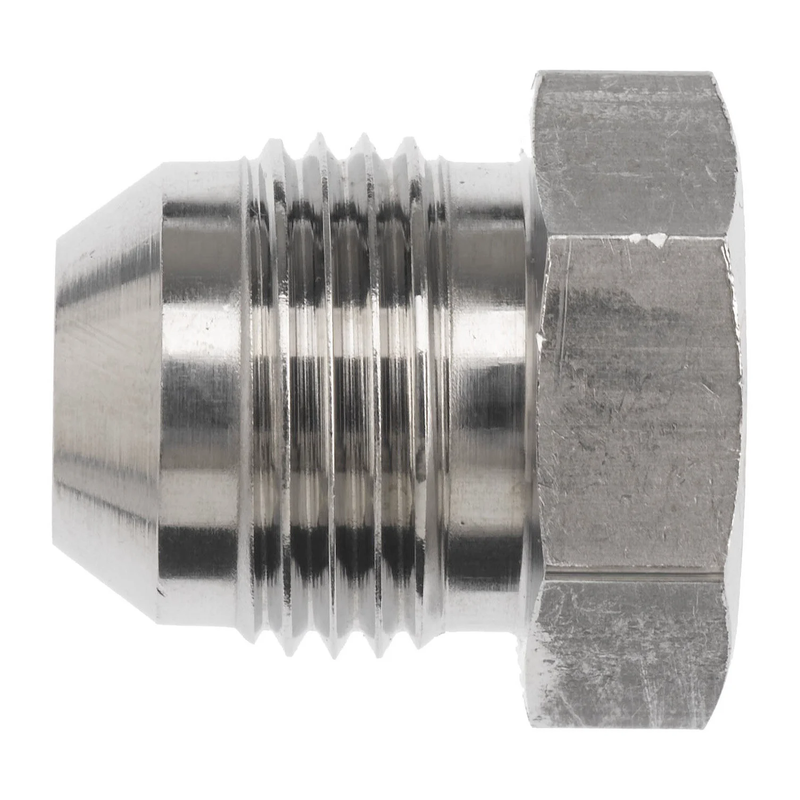

The Brennan Industries #12 MJIC Plug is engineered to effectively seal hydraulic ports in fluid power systems. Manufactured from high-strength steel with Cr3 plating for corrosion resistance, it features a 1-1/16-12 Male JIC SAE 37 Flare thread, ensuring a secure and leak-free connection. This plug is suitable for systems operating up to 5000 PSI and offers reliable durability in demanding applications.
- Durable steel construction with Cr3 corrosion-resistant plating
- 1-1/16-12 Male JIC SAE 37 Flare thread for tight sealing
- Ideal for blocking hydraulic ports and preventing leaks
- Maximum dynamic pressure rating of 5000 PSI
- Compact size with 1.28" overall length and 1.125" body hex
- Meets SAE J514 industry specifications
- Includes California Prop-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Body Hex in. | 1.125 |
| Overall Length L in. | 1.28 |
| Overall Length L2 in. | 0.38 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.2243 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.62 |
