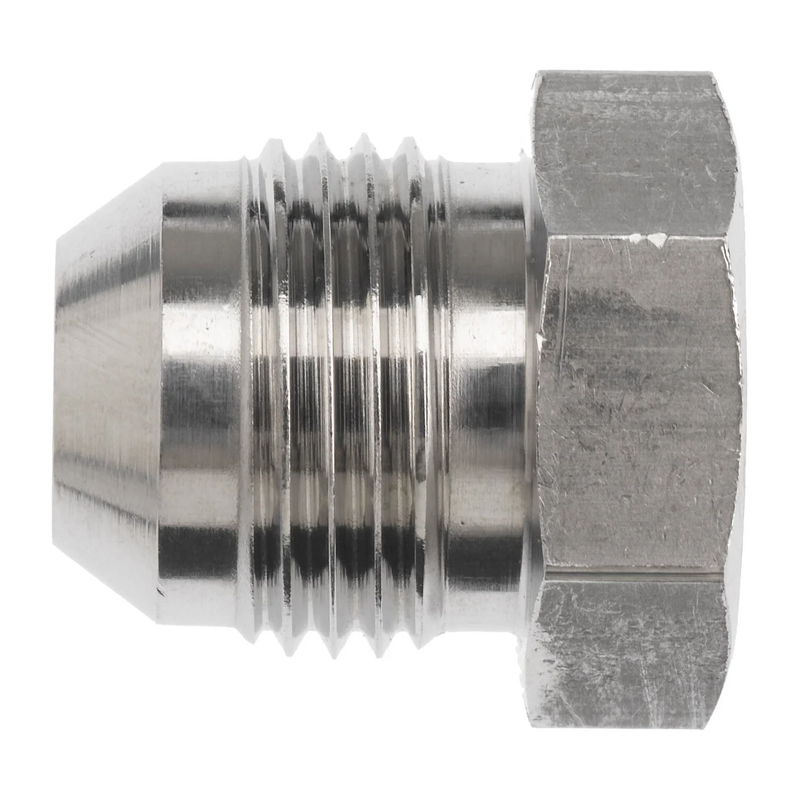

The Brennan Industries #16 MJIC Plug is designed for securely sealing hydraulic ports in high-pressure systems. Crafted from durable steel and finished with corrosion-resistant Cr3 plating, this plug features a 1-5/16-12 Male JIC SAE 37 Flare thread for a reliable, leak-proof connection. It supports system pressures up to 4000 PSI, making it suitable for demanding industrial applications.
- Durable steel construction with Cr3 corrosion-resistant plating
- 1-1/16-12 Male JIC SAE 37 Flare thread for tight sealing
- Ideal for blocking hydraulic ports and preventing leaks
- Maximum dynamic pressure rating of 5000 PSI
- Compact size with 1.28" overall length and 1.125" body hex
- Meets SAE J514 industry specifications
- Includes California Prop-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.84 |
| Thread B1 Specification | SAE J514 |
| Body Hex In | 1.37 |
| Overall Length L In | 1.33 |
| Overall Length L2 In | 0.419 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.3332 |
| Maximum Dynamic Pressure Psi | 400 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 2.515 |
