Brennan Industries of Texas

2500-06-06-FG

2500-06-06-FG

Regular price $7.98 USD
Regular price Sale price $7.98 USD
Sale Sold out
  • Manufacturer Part #2500-06-06-FG
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

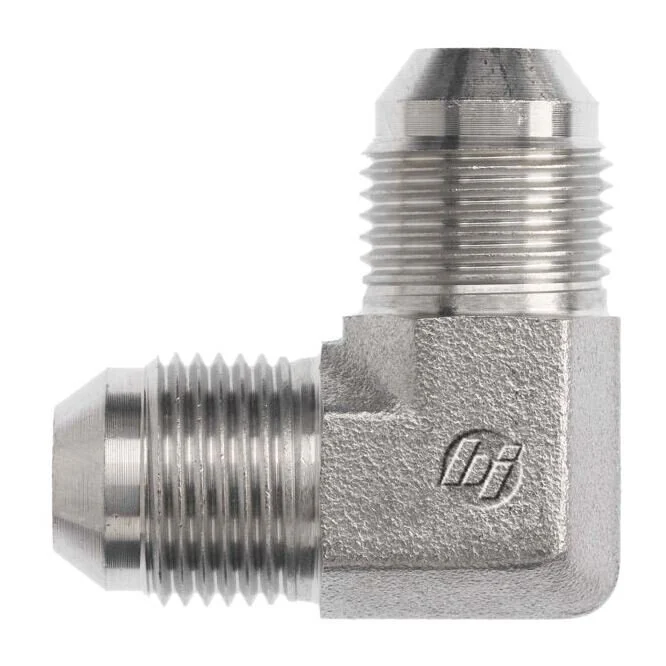

The Brennan Industries #6 MJIC x #6 MJIC 90 Elbow hydraulic fitting is precision forged from high-quality steel to ensure maximum strength and durability. Featuring Male JIC SAE 37 Flare threads on both ends, it provides a secure and leak-resistant connection ideal for tight hydraulic system bends. Finished with corrosion-resistant Cr3 plating, this fitting withstands pressures up to 6000 PSI, making it perfect for demanding industrial applications.

  • Forged steel construction for enhanced durability and reliability
  • 9/16-18 Male JIC SAE 37 Flare threads on both ends (SAE J514 compliant)
  • 90-degree elbow design for efficient routing in tight spaces
  • Corrosion-resistant Cr3 plating
  • Maximum dynamic pressure rating of 6000 PSI
  • Compact size with 1.06" overall and centerline length
  • Includes California Prop-65 warning
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 9/16-18
Thread B1 Drill In 0.297
Thread B1 Specification SAE J514
Thread B2 Type Male JIC SAE 37 Degree Flare
Thread B2 Size 9/16-18
Thread B2 Drill In 0.297
Thread B2 Specification SAE J514
Body Hex In 0.562
Overall Length L In 1.06
Centerline Length M In 1.06
Shape 90 Degree
Body Material Steel
Raw Material Type Steel Forging
Plating Cr3
Weight Lbs 0.1
Maximum Dynamic Pressure Psi 6000
California Residents Prop-65 Warning
Cubic in. (L  W  H) 0.212
