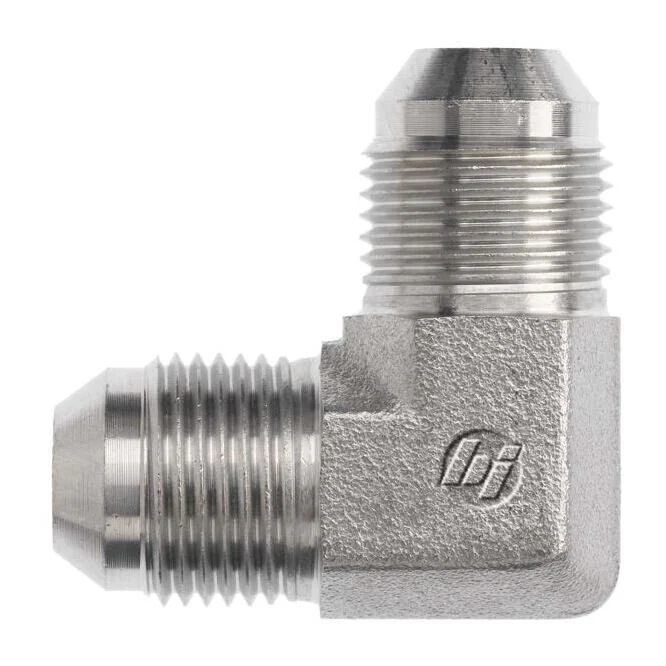

The Brennan Industries #8 MJIC x #6 MJIC 90 Elbow hydraulic fitting is forged from high-grade steel, offering superior strength and reliability for hydraulic systems. This fitting features Male JIC SAE 37 Flare threads of different sizes on each end, ensuring a tight, leak-proof seal compliant with SAE J514 standards. Its compact 90-degree elbow shape allows for efficient fluid flow in confined spaces. Finished with corrosion-resistant Cr3 plating, it can handle pressures up to 6000 PSI in demanding applications.
- Forged steel construction for strength and durability
- Male JIC SAE 37 Flare threads: 3/4-16 (B1) x 9/16-18 (B2), SAE J514 compliant
- 90-degree elbow design for optimal routing in tight spaces
- Corrosion-resistant Cr3 plating for extended service life
- Maximum dynamic pressure rating of 6000 PSI
- Compact dimensions with 1.14" overall length and 1.25" centerline length
- Includes California Prop-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 0.75 |
| Overall Length L in. | 1.14 |
| Centerline Length M in. | 1.25 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.188 |
| Maximum Dynamic Pressure psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.457 |
