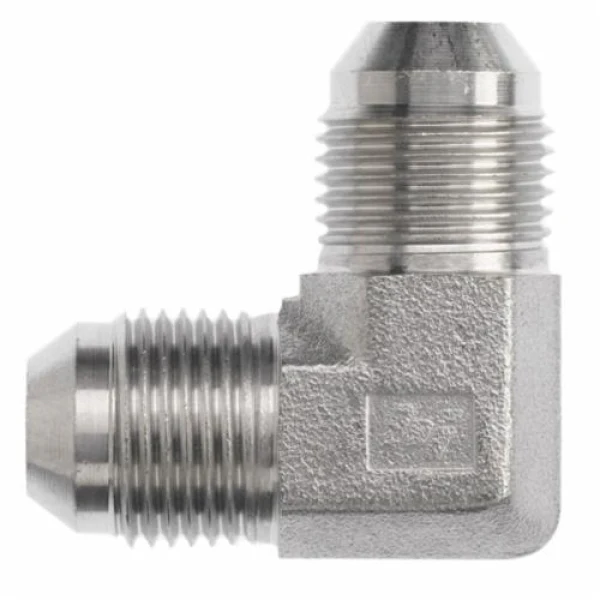

This 90-degree adapter features 3/4-16 male JIC SAE 37° flare threads on both ends, ideal for high-pressure hydraulic systems. Made from forged steel with CR3 plating, it offers excellent durability and corrosion resistance. With a compact design and a pressure rating of up to 6,000 PSI, it ensures reliable performance in demanding environments. The fitting complies with SAE J514 standards, making it suitable for various industrial applications.
- 90° Elbow with 3/4-16 Male JIC (SAE 37° Flare) on both ends
- Made from forged steel with CR3 corrosion-resistant plating
- Compact size: 1.250" overall & centerline length, 0.750" hex
- Pressure rating up to 6,000 PSI
- Meets SAE J514 specifications
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37° Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37° Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 0.750 in |
| Overall Length (L) | 1.250 in |
| Centerline Length (M) | 1.250 in |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight | 0.2 lbs |
| Max Dynamic Pressure | 6,000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. Space (L?W?H) | 0.457 |
