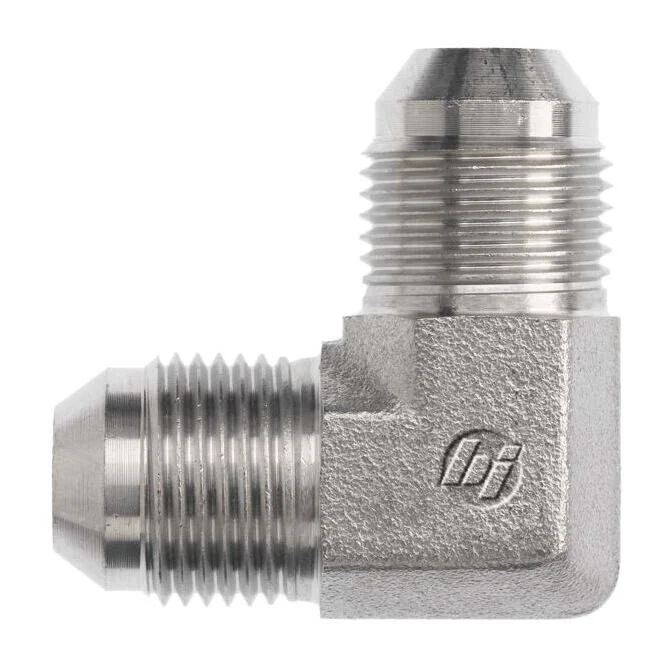

The Brennan Industries #12 MJIC x #8 MJIC 90 Elbow hydraulic fitting is precision forged from durable steel to withstand demanding hydraulic applications. Featuring Male JIC SAE 37 Flare threads on both ends, sized 1-1/16-12 and 3/4-16 respectively, it ensures a reliable, leak-free connection per SAE J514 standards. Its 90-degree elbow design facilitates efficient directional changes in hydraulic lines while minimizing space usage. Finished with corrosion-resistant Cr3 plating, this fitting offers excellent performance with a maximum pressure rating of 5000 PSI.
- Forged steel body for enhanced durability and strength
- Male JIC SAE 37 Flare threads: 1-1/16-12 (B1) x 3/4-16 (B2), compliant with SAE J514
- 90-degree elbow shape for effective fluid routing in compact spaces
- Corrosion-resistant Cr3 plating for long-lasting protection
- Rated for maximum dynamic pressure of 5000 PSI
- Compact size with 1.42" overall length and 1.66" centerline length
- Includes California Prop-65 warning
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.42 |
| Centerline Length M in. | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.4562 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.236 |
