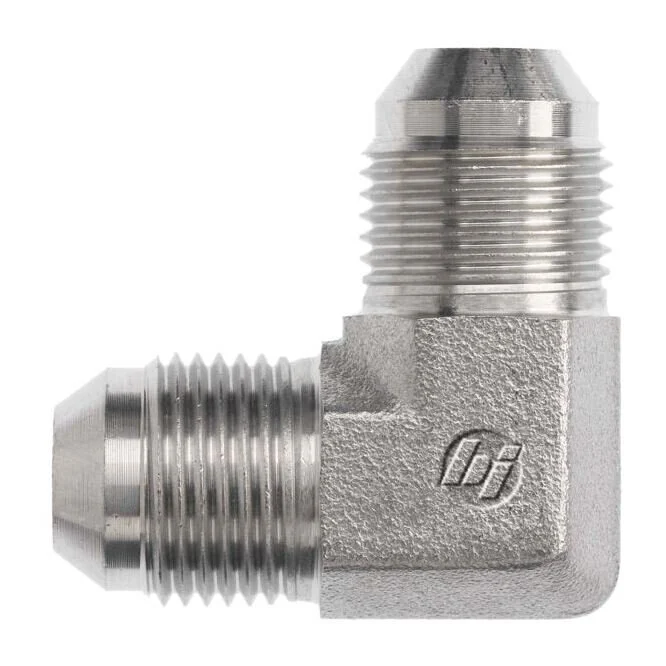

This 90-degree elbow hydraulic fitting features male JIC SAE 37-degree flare threads on both ends, designed to provide secure and leak-resistant connections. Made from forged steel with a corrosion-resistant Cr3 plating, it ensures long-lasting durability in demanding hydraulic systems. Suitable for high-pressure applications up to 5000 PSI, this fitting is ideal for industrial and mobile use. Its compact size and robust construction allow for efficient installation in tight spaces.
- 90 elbow fitting for efficient hydraulic routing in tight installations.
- Features #12 and #10 JIC SAE 37 male flare ends for secure, leak-resistant connections.
- Forged steel body with Cr3 plating ensures strength and corrosion resistance.
- Handles pressures up to 5000 PSI; ideal for industrial and hydraulic applications.
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.54 |
| Centerline Length M in. | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.4687 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.236 |
