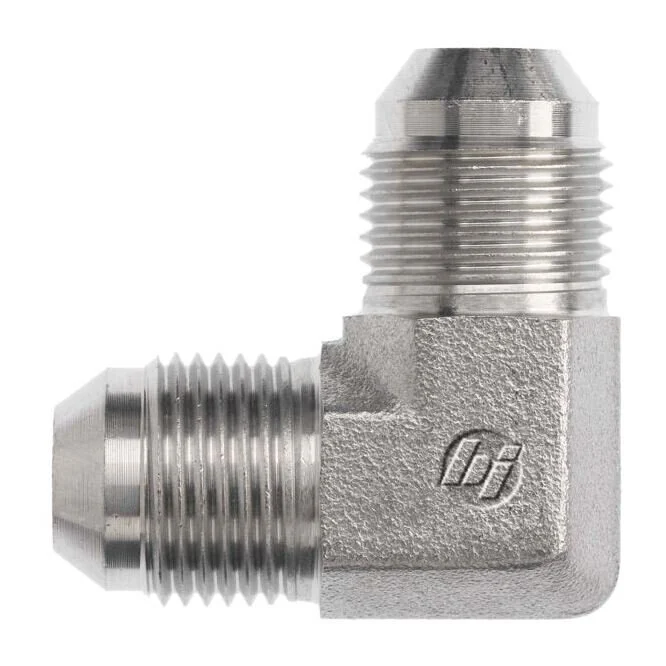

This 90-degree elbow hydraulic fitting is engineered with male JIC SAE 37-degree flare threads on both ends, providing a secure and precise connection for hydraulic systems. Crafted from forged steel and coated with corrosion-resistant Cr3 plating, it delivers reliable performance under high pressure up to 5000 PSI. Its robust build and compact dimensions make it well-suited for use in industrial and mobile hydraulic applications, especially where space is limited.
- Precision-machined to SAE J514 standards for secure and leak-free connections.
- Rated for up to 5000 PSI dynamic pressure, ideal for high-performance hydraulic systems.
- Features 1-1/16-12 JIC threads on both ends for compatibility with standard hydraulic hoses.
- Cr3 plated finish enhances corrosion resistance in demanding industrial conditions.
- Compact 90-degree angle helps in tight space installations without compromising flow.
- Heavy-duty steel forging construction ensures long-lasting strength and reliability.
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.66 |
| Centerline Length M in. | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.494 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.236 |
