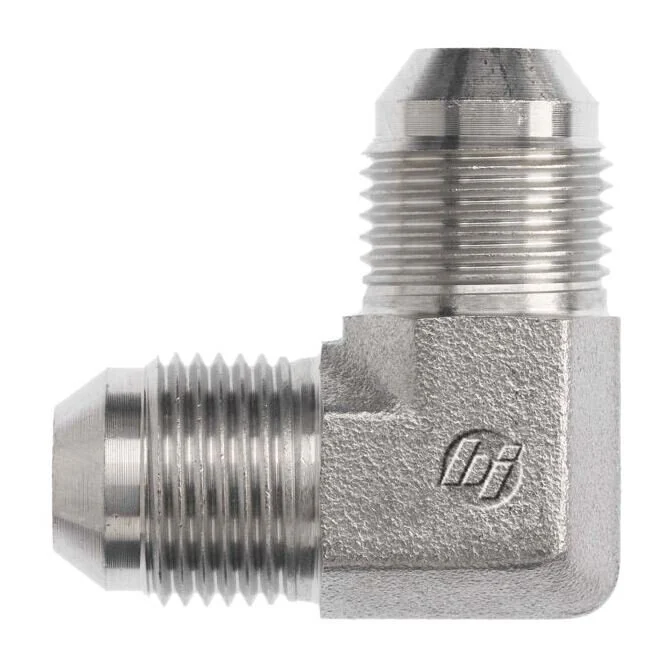

This 90-degree elbow hydraulic fitting features male JIC SAE 37-degree flare threads on both ends, ensuring a secure and leak-resistant connection for hydraulic systems. Manufactured from forged steel with a corrosion-resistant Cr3 plating, it offers durability and long-lasting performance. Designed to handle pressures up to 4000 PSI, this fitting is ideal for heavy-duty applications where reliability and strength are essential. Its compact yet robust design makes installation easy in confined spaces.
- 90-degree elbow with male JIC SAE 37-degree flare threads on both ends
- Forged steel construction for superior strength and durability
- Cr3 plating for excellent corrosion resistance
- Rated for maximum dynamic pressure of 4000 PSI
- Compact design suitable for tight hydraulic system layouts
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 in. |
| Thread B2 Specification | SAE J514 |
| Body Hex in. | 1.312 |
| Overall Length L in. | 1.81 |
| Centerline Length M in. | 1.81 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.742 |
| Maximum Dynamic Pressure psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 2.122 |
