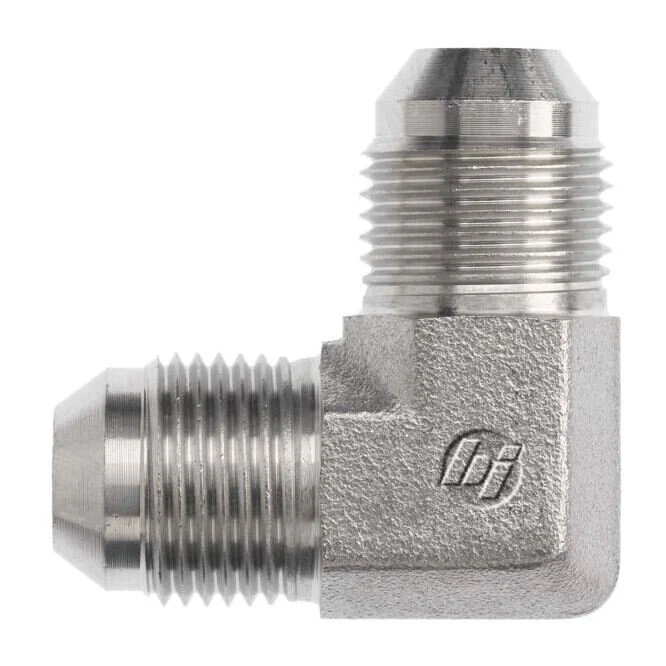

The 1-1/4" MJIC x 1-1/4" MJIC 90° Elbow from Brennan Industries of Texas is a heavy-duty forged hydraulic fitting designed for high-pressure applications. It features 1-5/8-12 Male JIC 37° Flare connections on both ends, manufactured to strict SAE J514 specifications for secure, leak-free performance. The forged steel body provides exceptional strength and durability, while the Cr3 plating enhances corrosion resistance in demanding environments. With a 4000 PSI dynamic pressure rating, this elbow is ideal for industrial, mobile, and high-pressure hydraulic systems. Its precision 90° design ensures efficient routing where directional changes are required.
Fitting Chart- Heavy-duty 1-1/4" Male JIC 37° Flare connections on both sides
- Manufactured to SAE J514 standards for precise and reliable sealing
- Forged steel body for maximum strength under high pressure
- Cr3 corrosion-resistant plating for long service life
- Rated for up to 4000 PSI dynamic hydraulic pressure
- 90° elbow shape ideal for directional hose and tube routing
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.625 |
| Overall Length L In | 2.06 |
| Centerline Length M In | 2.06 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 1.3063 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 3.793 |
