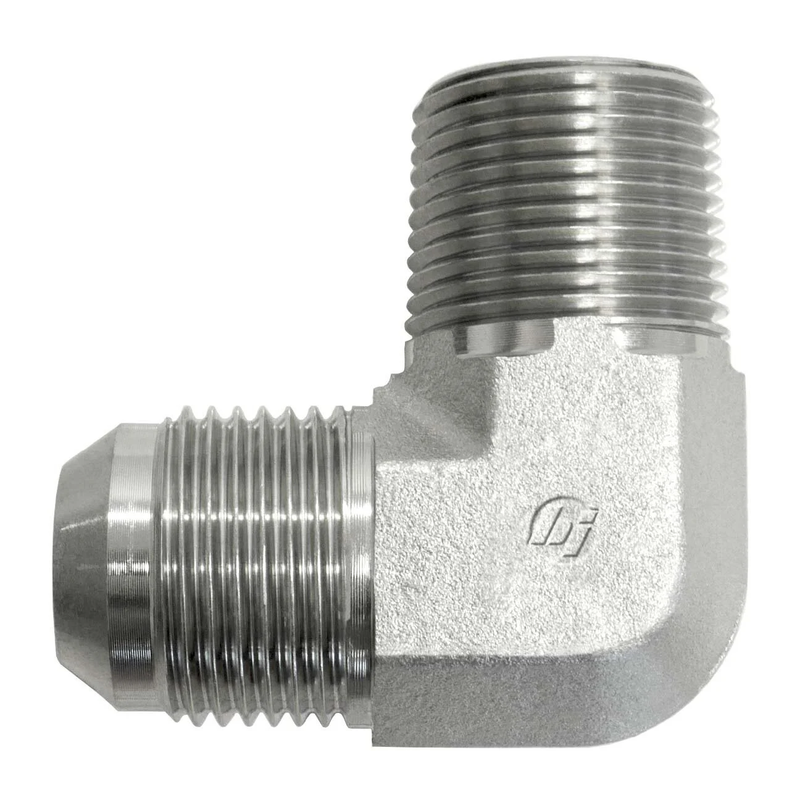

This 90-degree elbow hydraulic fitting is designed with a male JIC SAE 37-degree flare thread on one end and a male NPTF thread on the other, providing a versatile and secure connection for various hydraulic systems. Crafted from forged steel with a corrosion-resistant Cr3 finish, it ensures durability and resistance to wear. The compact design allows for easy installation in tight spaces while supporting high-pressure applications up to 6000 PSI. Ideal for industrial and mobile hydraulic setups requiring reliable performance.
- 90-degree elbow with male JIC SAE 37-degree flare and male NPTF threads
- Forged steel construction for enhanced strength and longevity
- Cr3 plating offers excellent corrosion protection
- Supports dynamic pressures up to 6000 PSI
- Small and lightweight for installation in restricted areas
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/8-27 |
| Thread B2 Drill In | 0.188 in. |
| Thread B2 Specification | SAE J476 |
| Body Hex in. | 0.438 |
| Overall Length L in. | 0.78 |
| Centerline Length M in. | 0.89 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.0479 |
| Maximum Dynamic Pressure psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 0.485 |
