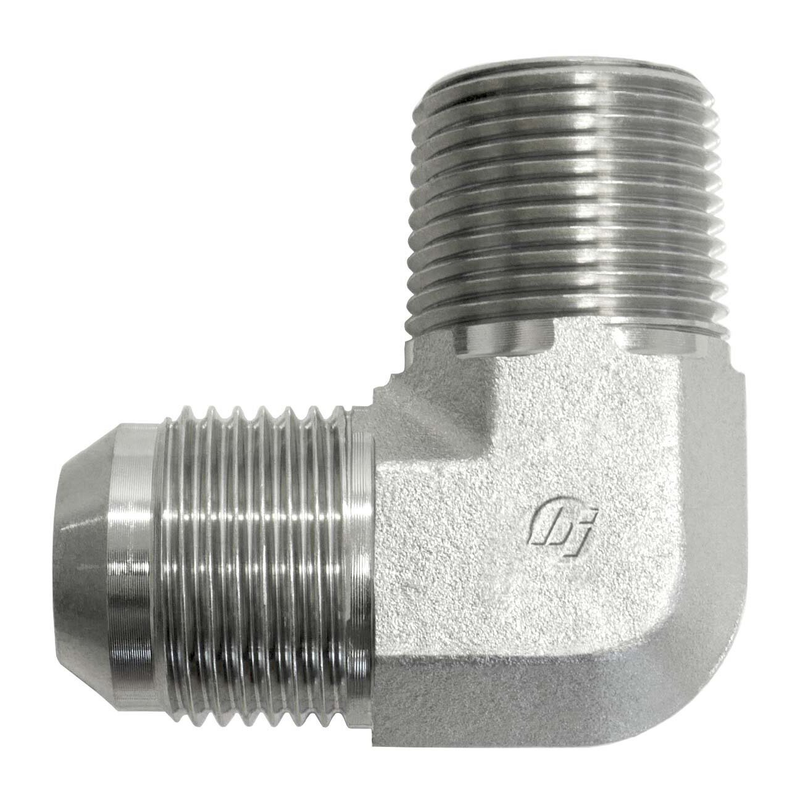

The Brennan Industries 2501-04-02-SS is a high-quality 90° elbow hydraulic fitting designed to connect 1/4" Male JIC (37° flare) to 1/8" Male NPTF ports while redirecting flow in tight or angled installations. Made from premium stainless steel, it delivers exceptional corrosion resistance and long-term durability, even in harsh or high-moisture environments. With a dynamic pressure rating of 6000 PSI, this elbow fitting ensures dependable, leak-free performance in demanding hydraulic systems. Its precision-machined flare and NPTF threads promote a secure seal, making it ideal for compact machinery layouts, industrial equipment, and high-pressure fluid applications.
Fitting Chart- Provides a 90° connection to route hydraulic lines efficiently in tight or angled spaces
- Stainless steel body ensures superior strength and long-term corrosion resistance
- Creates a secure, leak-tight seal between JIC flare and NPTF threaded ports
- Engineered for high-pressure systems, supporting up to 6000 PSI
- Precision-machined threads deliver stable, vibration-resistant performance
- Ideal for industrial machinery, marine environments, chemical systems, and hydraulic repairs
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/8-27 |
| Thread B2 Drill In | 0.188 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.438 |
| Overall Length L In | 0.78 |
| Centerline Length M In | 0.89 |
| Shape | 90 Degree |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.0562 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.485 |
