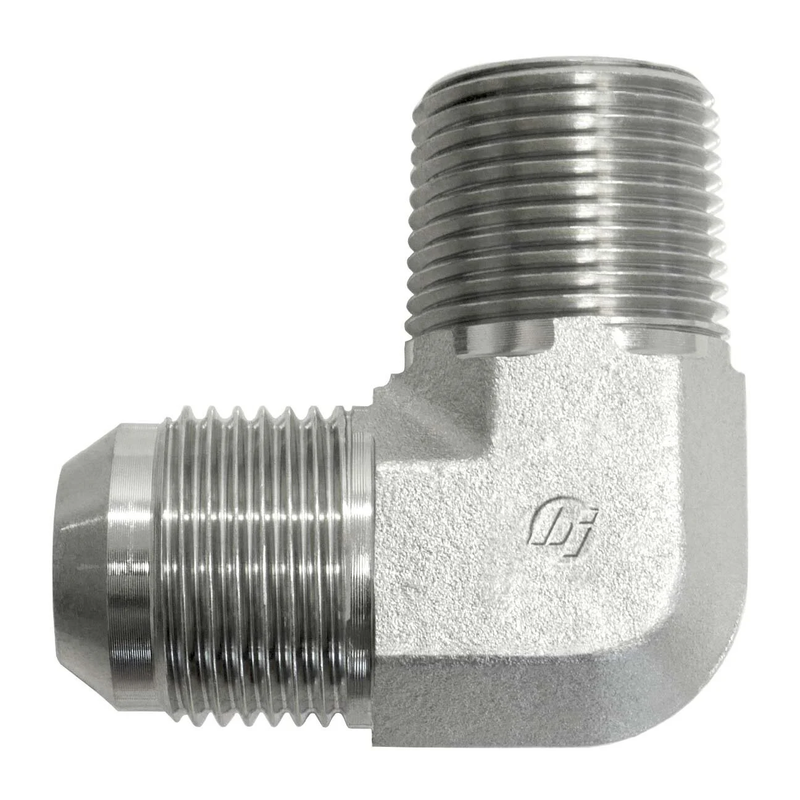

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread paired with a male NPTF thread, offering reliable and leak-resistant connections for hydraulic systems. Manufactured from forged steel and coated with corrosion-resistant Cr3 plating, it ensures long-lasting durability even in harsh environments. Its compact size and lightweight design make it suitable for installations in tight spaces, while handling pressures up to 6000 PSI. Perfect for industrial and mobile hydraulic applications requiring dependable performance.
- 90-degree elbow with male JIC SAE 37-degree flare and male NPTF thread ends
- Forged steel body providing strength and durability
- Cr3 plating for superior corrosion resistance
- Supports maximum dynamic pressure of 6000 PSI
- Compact and lightweight for easy installation in confined spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 in. |
| Thread B2 Specification | SAE J476 |
| Body Hex in. | 0.562 |
| Overall Length L in. | 1.09 |
| Centerline Length M in. | 1.05 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.056 |
| Maximum Dynamic Pressure psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 1.026 |
