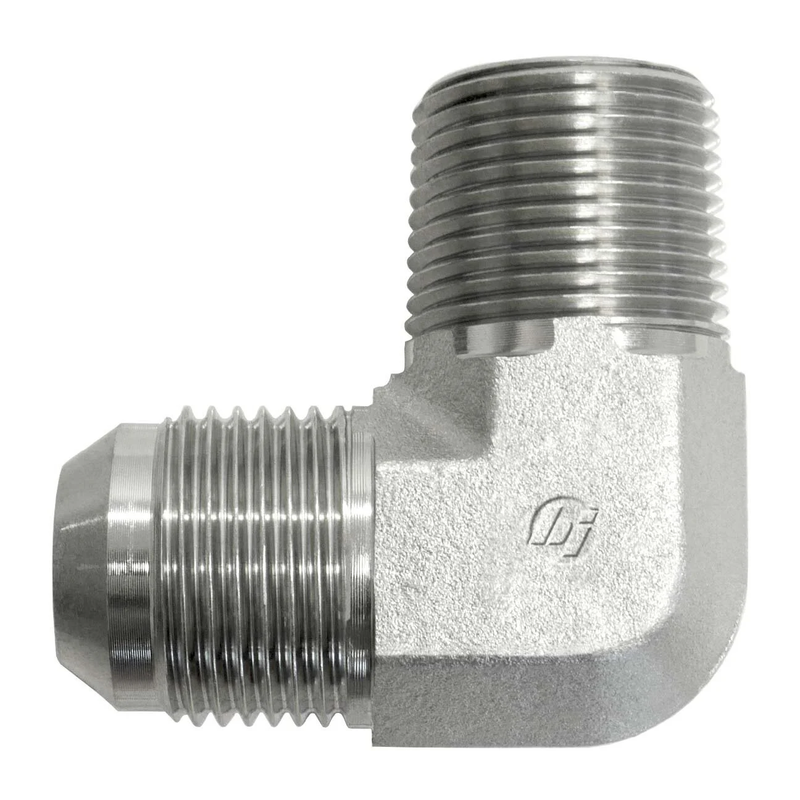

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread on one end and a male NPTF thread on the other, designed for secure and leak-free hydraulic connections. Made from forged steel with durable Cr3 plating, it offers excellent resistance to corrosion and wear. Its robust construction supports high-pressure applications up to 6000 PSI. Compact in size, it is ideal for use in tight or confined hydraulic systems requiring reliable performance and longevity.
- 90-degree elbow with male JIC SAE 37-degree flare and male NPTF threads
- Forged steel body for enhanced strength and durability
- Corrosion-resistant Cr3 plating
- Maximum dynamic pressure rating of 6000 PSI
- Compact design suitable for tight installation spaces
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/16-20 |
Thread B1 Drill In | 0.172 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 3/8-18 |
Thread B2 Drill In | 0.406 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 0.75 |
Overall Length L in. | 1.22 |
Centerline Length M in. | 1.12 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.172 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 1.788 |
