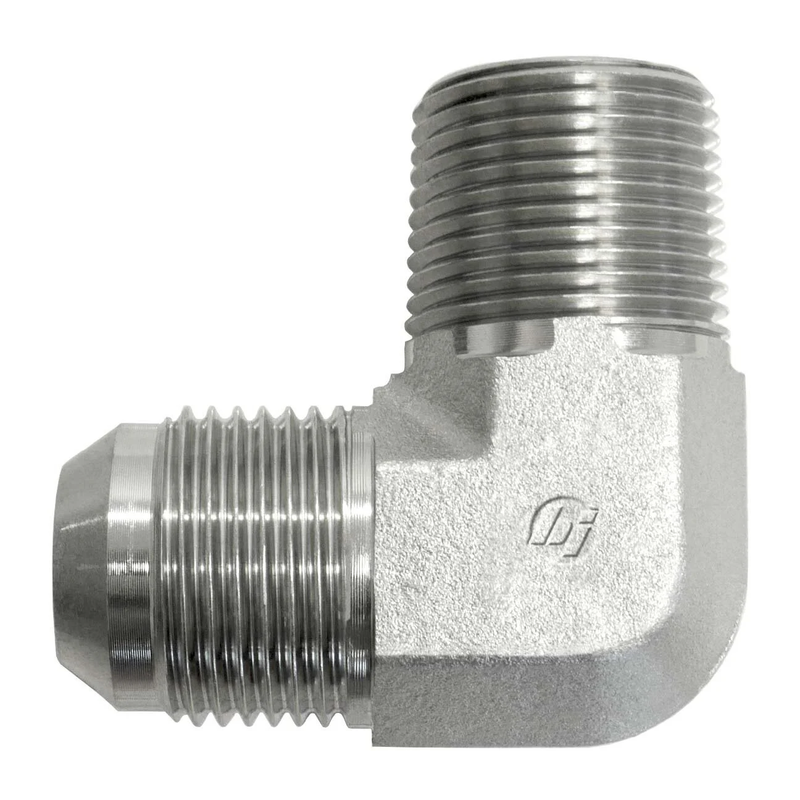

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread on one side and a male NPTF thread on the other, providing a reliable connection in hydraulic systems. Constructed from forged steel with Cr3 plating, it ensures high durability and resistance to corrosion. Designed to withstand pressures up to 6000 PSI, this fitting is ideal for demanding applications requiring secure and leak-free performance. Its compact size fits well in tight spaces.
- 90-degree elbow with male JIC SAE 37-degree flare and male NPTF threads
- Forged steel body for strength and longevity
- Corrosion-resistant Cr3 plating
- Supports maximum dynamic pressure of 6000 PSI
- Compact design suitable for confined hydraulic setups
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/16-20 |
Thread B1 Drill In | 0.172 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1/2-14 |
Thread B2 Drill In | 0.531 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 0.875 |
Overall Length L in. | 1.47 |
Centerline Length M in. | 1.21 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.27 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 2.75 |
