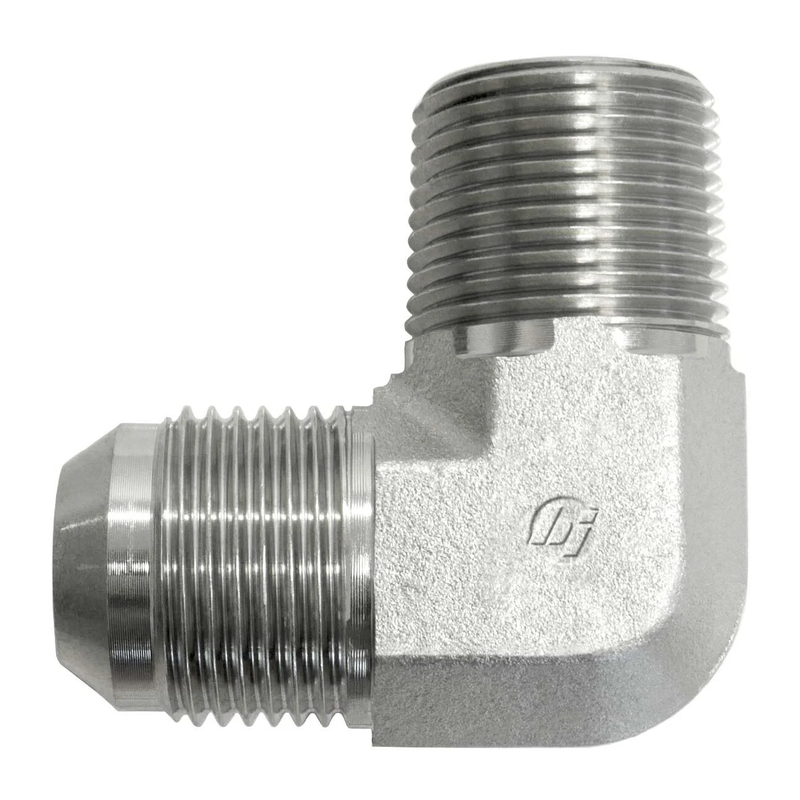

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread paired with a male NPTF thread, providing a secure and versatile connection for hydraulic systems. Made from forged steel with Cr3 plating, it offers excellent durability and corrosion resistance. Designed for high-pressure environments, it can withstand up to 6000 PSI. Its compact dimensions allow installation in tight spaces without compromising performance.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel construction for enhanced strength and reliability
- Corrosion-resistant Cr3 plating for long-lasting performance
- Rated for up to 6000 PSI dynamic pressure
- Compact size ideal for confined hydraulic applications
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 9/16-18 |
Thread B1 Drill In | 0.297 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1/4-18 |
Thread B2 Drill In | 0.281 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 0.562 |
Overall Length L in. | 1.09 |
Centerline Length M in. | 1.06 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.096 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 1.033 |
