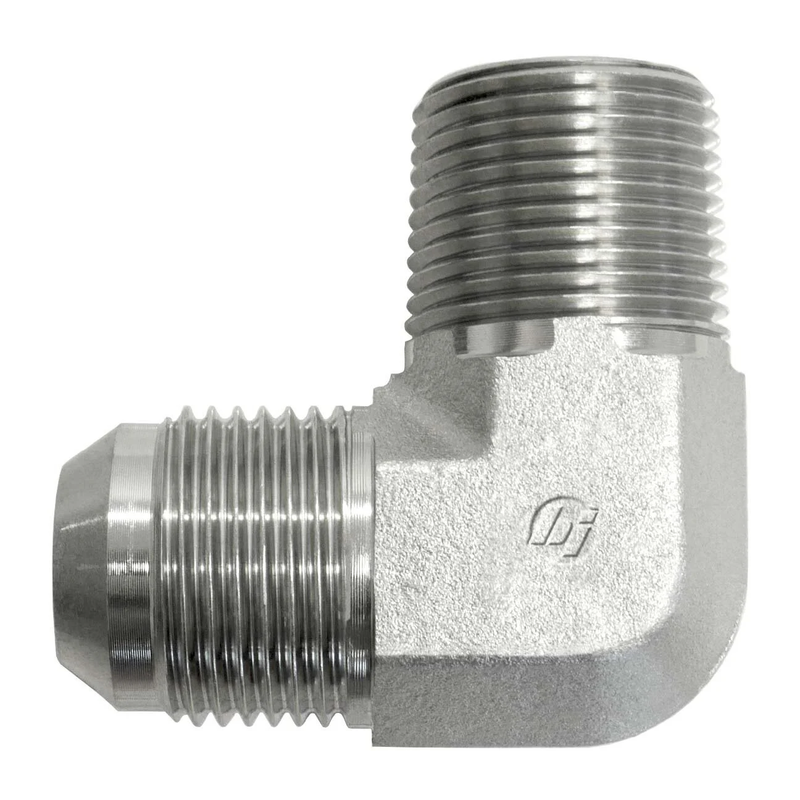

This 90-degree hydraulic elbow fitting combines a male JIC SAE 37-degree flare thread with a male NPTF thread, ensuring a tight, leak-free connection for hydraulic systems. Crafted from forged steel and finished with Cr3 plating, it delivers strong resistance against wear and corrosion. Built to handle pressures up to 6000 PSI, it is ideal for demanding industrial applications. Its compact design allows easy integration into confined spaces without sacrificing durability.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Durable forged steel construction with corrosion-resistant Cr3 plating
- Supports maximum dynamic pressure of 6000 PSI
- Ideal for high-pressure hydraulic applications
- Compact and reliable design for tight installation areas
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 9/16-18 |
Thread B1 Drill In | 0.297 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 3/8-18 |
Thread B2 Drill In | 0.406 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 0.75 |
Overall Length L in. | 1.22 |
Centerline Length M in. | 1.14 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.174 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 1.812 |
