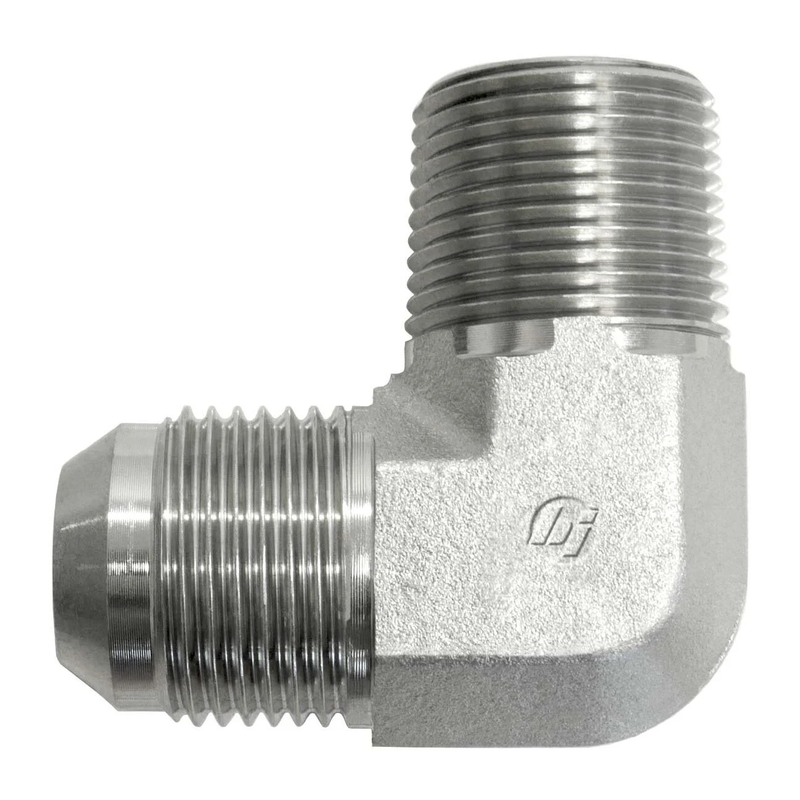

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread paired with a male NPTF thread, offering a secure and reliable connection in hydraulic systems. Made from high-quality forged steel with a corrosion-resistant Cr3 plating, it withstands harsh environments and high pressures. Designed to handle up to 6000 PSI, this fitting is ideal for industrial and heavy-duty applications requiring durability and performance. Its precise engineering ensures leak-free operation in tight spaces.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel construction with Cr3 corrosion-resistant plating
- Rated for maximum dynamic pressure up to 6000 PSI
- Compact size: 1.47 in. overall length, 1.33 in. centerline length
- Suitable for demanding hydraulic applications requiring robust, leak-proof fittings
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 3/4-16 |
Thread B1 Drill In | 0.391 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1/2-14 |
Thread B2 Drill In | 0.531 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 0.875 |
Overall Length L in. | 1.47 |
Centerline Length M in. | 1.33 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.272 |
Maximum Dynamic Pressure psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 2.95 |
