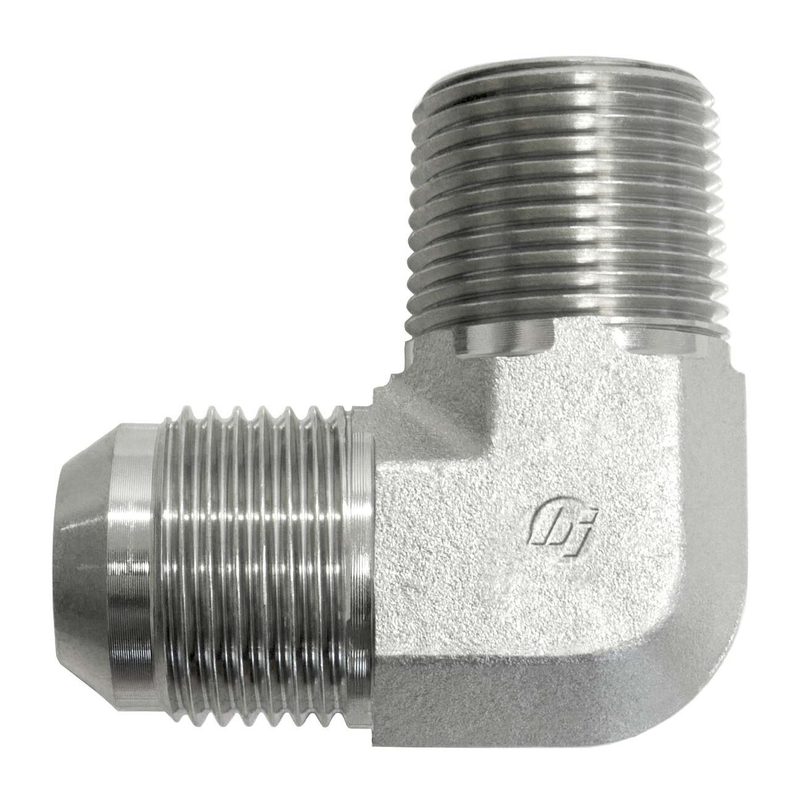

The Brennan Industries 2501-08-08-SS is a 90° elbow hydraulic fitting designed to connect 1/2" Male JIC (37° flare) to 1/2" Male NPTF ports with a secure, leak-resistant joint. Made from high-quality stainless steel, it provides excellent corrosion resistance and long-term durability, even in harsh industrial environments. Its compact elbow design allows for efficient routing of hydraulic lines in tight spaces. Rated for up to 6000 PSI, this fitting ensures reliable, leak-free performance in high-pressure hydraulic systems. Precision-machined threads and flare ends enable a stable, vibration-resistant seal. Ideal for industrial machinery, fluid transfer systems, and maintenance operations.
Fitting Chart- 90 elbow design allows neat and efficient routing of hydraulic lines
- Stainless steel construction provides superior corrosion resistance and long-term durability
- Secure connection between JIC flare and NPTF threaded ports for leak-free operation
- Compact size enables installation in tight or confined hydraulic assemblies
- Rated for high-pressure applications up to 6000 PSI
- Precision threads and flare ensure stable, vibration-resistant performance
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.47 |
| Centerline Length M In | 1.33 |
| Shape | 90 Degree |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.275 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 2.95 |
