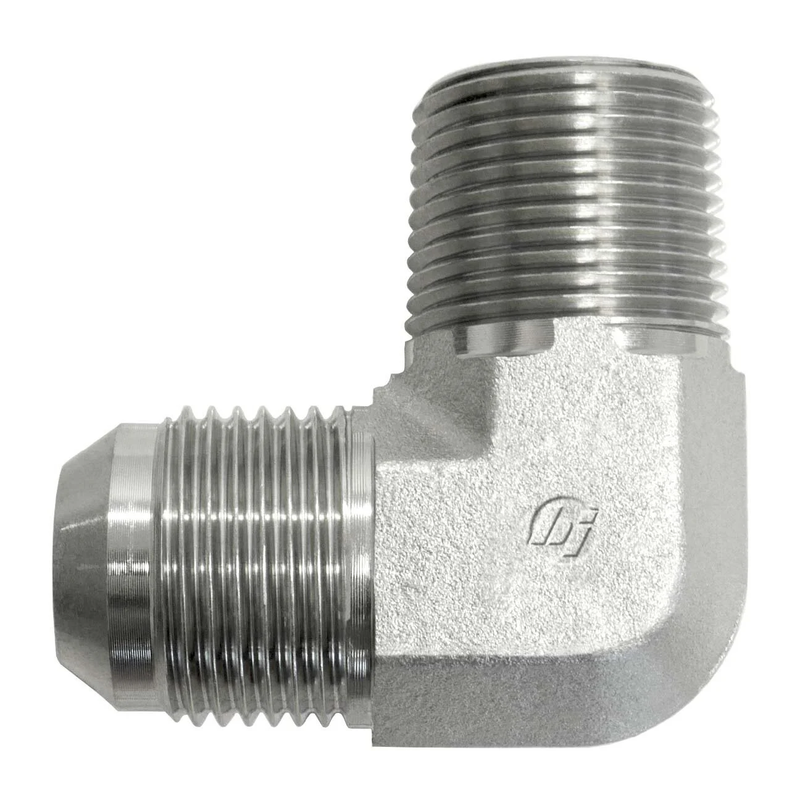

This 90-degree hydraulic elbow fitting combines a male JIC SAE 37-degree flare thread with a male NPTF thread, delivering a strong and reliable connection for hydraulic systems. Crafted from forged steel and finished with corrosion-resistant Cr3 plating, it is built for durability and long-lasting performance. Designed to handle pressures up to 5500 PSI, this fitting is well-suited for heavy-duty and industrial hydraulic applications. Its compact design allows for easy installation in confined spaces.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel body with corrosion-resistant Cr3 plating
- Maximum dynamic pressure rating of 5500 PSI
- Overall length: 1.59 in.; centerline length: 1.42 in.
- Suitable for rugged hydraulic environments requiring dependable fittings
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 in. |
| Thread B2 Specification | SAE J476 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.59 |
| Centerline Length M in. | 1.42 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.406 |
| Maximum Dynamic Pressure psi | 5500 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 4.395 |
