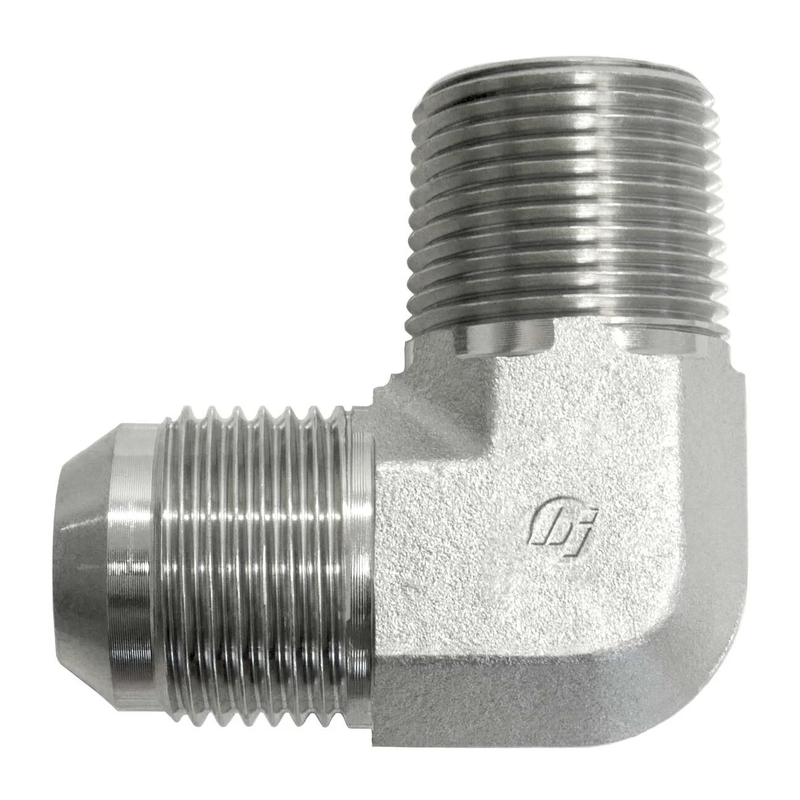

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread on one end and a male NPTF thread on the other, providing a secure and leak-resistant connection for hydraulic systems. Manufactured from forged steel and coated with corrosion-resistant Cr3 plating, it ensures durability and longevity under demanding conditions. Designed to handle pressures up to 5000 PSI, this fitting is ideal for various industrial and heavy-duty hydraulic applications. Its compact dimensions make it easy to install in tight spaces.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel construction with Cr3 corrosion-resistant plating
- Maximum dynamic pressure rating of 5000 PSI
- Overall length: 1.59 in.; centerline length: 1.54 in.
- Robust design suitable for demanding hydraulic environments
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 in. |
| Thread B2 Specification | SAE J47 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.59 |
| Centerline Length M in. | 1.54 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.438 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 4.665 |
