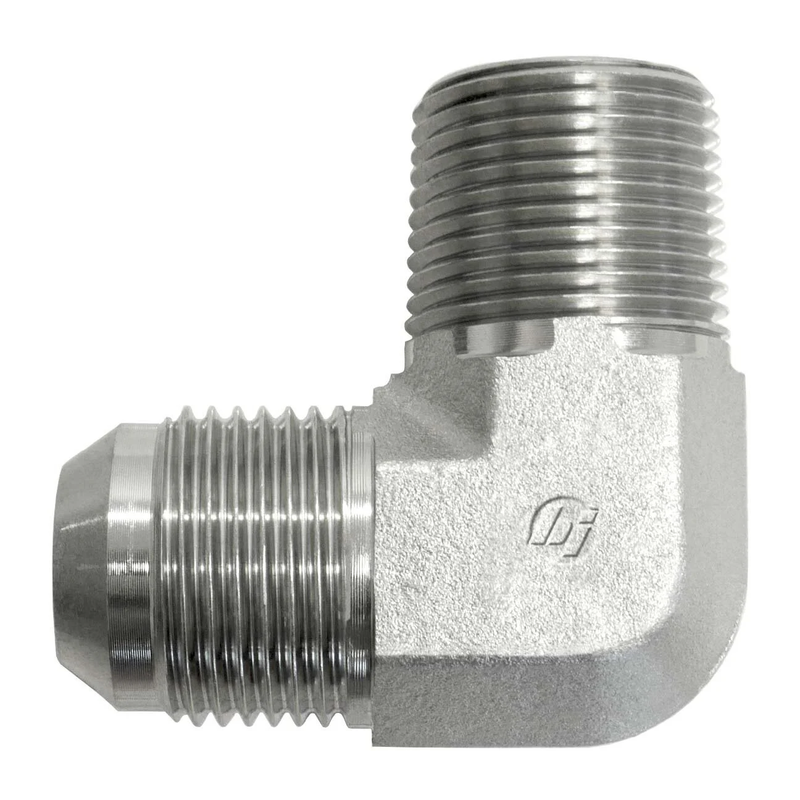

This 90-degree hydraulic elbow fitting combines a male JIC SAE 37-degree flare thread with a male NPTF thread for a reliable and leak-proof connection. Crafted from forged steel and finished with Cr3 plating, it offers excellent resistance to corrosion and wear. Built to withstand pressures up to 5000 PSI, this fitting is ideal for use in high-pressure hydraulic systems. Its compact design facilitates easy installation in confined spaces while maintaining strength and durability.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel construction with corrosion-resistant Cr3 plating
- Supports a maximum dynamic pressure of 5000 PSI
- Overall length: 1.59 in.; centerline length: 1.66 in.
- Hex size: 1.062 in. for easy wrenching and installation
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 in. |
| Thread B2 Specification | SAE J476 |
| Body Hex in. | 1.062 |
| Overall Length L in. | 1.59 |
| Centerline Length M in. | 1.66 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.452 |
| Maximum Dynamic Pressure psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 4.935 |
