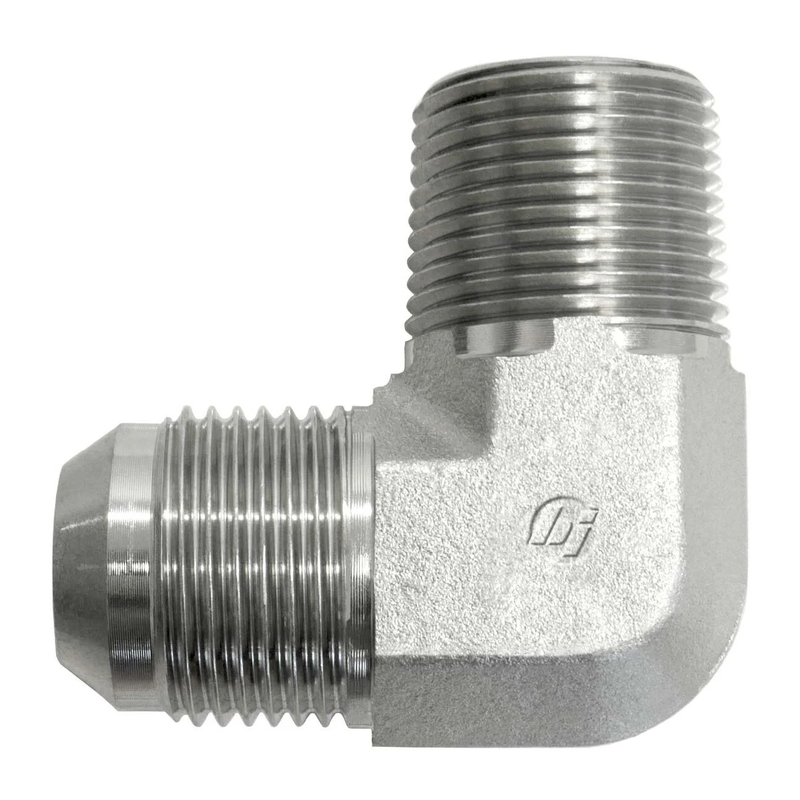

This 90-degree hydraulic elbow fitting features a male JIC SAE 37-degree flare thread paired with a male NPTF thread, engineered for a secure and leak-resistant connection. Made from forged steel with a durable Cr3 plating, it ensures long-lasting performance in demanding hydraulic applications. Designed to handle pressures up to 3000 PSI, it suits heavy-duty systems requiring reliable fluid transfer. The robust construction and compact size make it easy to install in tight spaces without compromising strength.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel body with corrosion-resistant Cr3 plating
- Maximum dynamic pressure rating of 3000 PSI
- Overall length: 1.97 in.; centerline length: 1.76 in.
- Hex size: 1.312 in. for convenient wrench application
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 1-1/16-12 |
Thread B1 Drill In | 0.609 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1-11-1/2 |
Thread B2 Drill In | 0.938 in. |
Thread B2 Specification | SAE J476 |
Body Hex in. | 1.312 |
Overall Length L in. | 1.97 |
Centerline Length M in. | 1.76 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.7 |
Maximum Dynamic Pressure psi | 3000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 8.324 |
