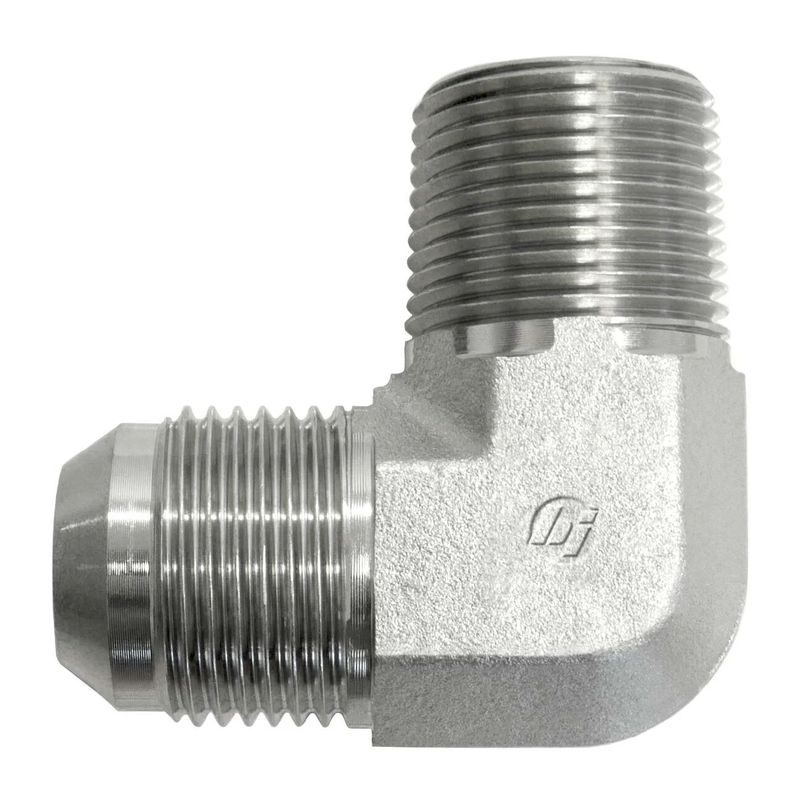

This 90-degree hydraulic elbow fitting combines a male JIC SAE 37-degree flare thread with a male NPTF thread to provide a reliable, leak-proof connection in hydraulic systems. Crafted from forged steel and coated with Cr3 plating, it offers excellent durability and corrosion resistance. With a maximum pressure rating of 3000 PSI, it is designed for high-performance applications requiring robust fluid handling. Its compact design allows easy installation in confined spaces without compromising on strength.
- 90-degree elbow with male JIC SAE 37 flare and male NPTF threads
- Forged steel construction with corrosion-resistant Cr3 plating
- Rated for a maximum dynamic pressure of 3000 PSI
- Made from high-strength steel forging for durability
- Precision-machined to meet SAE J514 and SAE J476 specifications
- Compact design ideal for tight hydraulic system spaces
- Cr3 plating for enhanced corrosion resistance and longer service life
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1-11-1/2 |
| Thread B2 Drill In | 0.938 in. |
| Thread B2 Specification | SAE J476 |
| Body Hex in. | 1.312 |
| Overall Length L in. | 1.97 |
| Centerline Length M in. | 1.81 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.728 |
| Maximum Dynamic Pressure psi | 3000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 8.496 |
