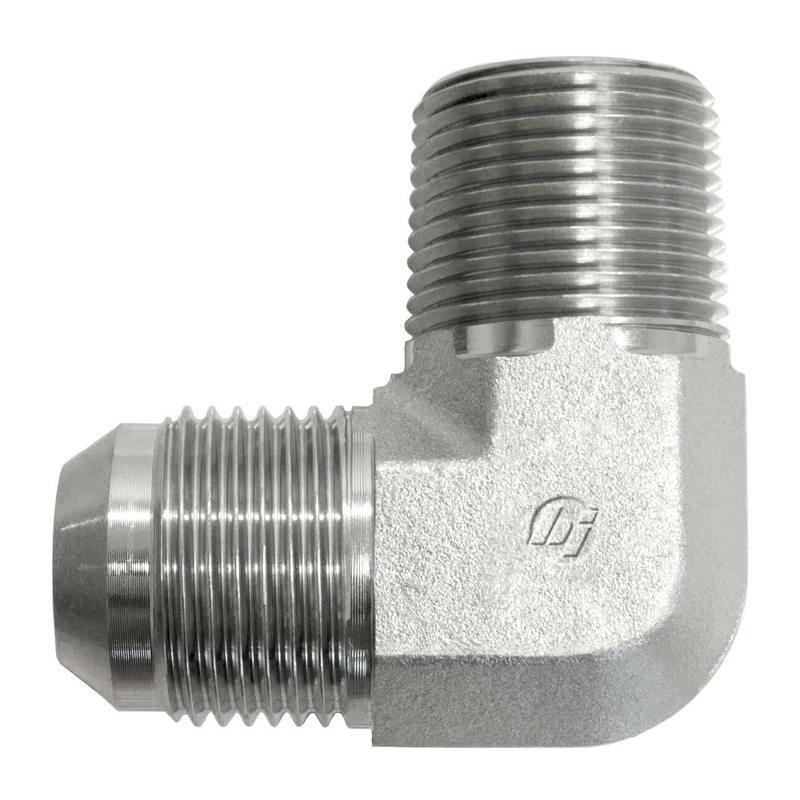

The Brennan 2501-20-20-FG 90° elbow fitting is designed for precise, leak-free connections in high-pressure hydraulic systems. Featuring a 1-1/4" MJIC male 37° flare on one end and a 1-1/4" MNPT male thread on the other, it allows secure fluid line routing in tight spaces. Constructed from forged steel with durable Cr3 plating, this fitting offers exceptional strength and corrosion resistance. Engineered to meet SAE J514 and SAE J476 standards, it ensures reliable performance in industrial, mobile, and fluid power applications. Its compact design and 2.38" overall length make installation simple and efficient.
Fitting Chart- 90° elbow connector: 1-1/4" MJIC x 1-1/4" MNPT
- Forged steel construction for maximum durability
- Cr3 plating provides corrosion resistance
- Meets SAE J514 (JIC) and SAE J476 (NPTF) standards
- Compact design for routing in tight hydraulic assemblies
- Suitable for high-pressure hydraulic, industrial, and mobile applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1-1/4-11-1/2 |
| Thread B2 Drill In | 1.25 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.625 |
| Overall Length L In | 2.38 |
| Centerline Length M In | 2.06 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 1.234 |
| Maximum Dynamic Pressure Psi | 3000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 14.902 |
