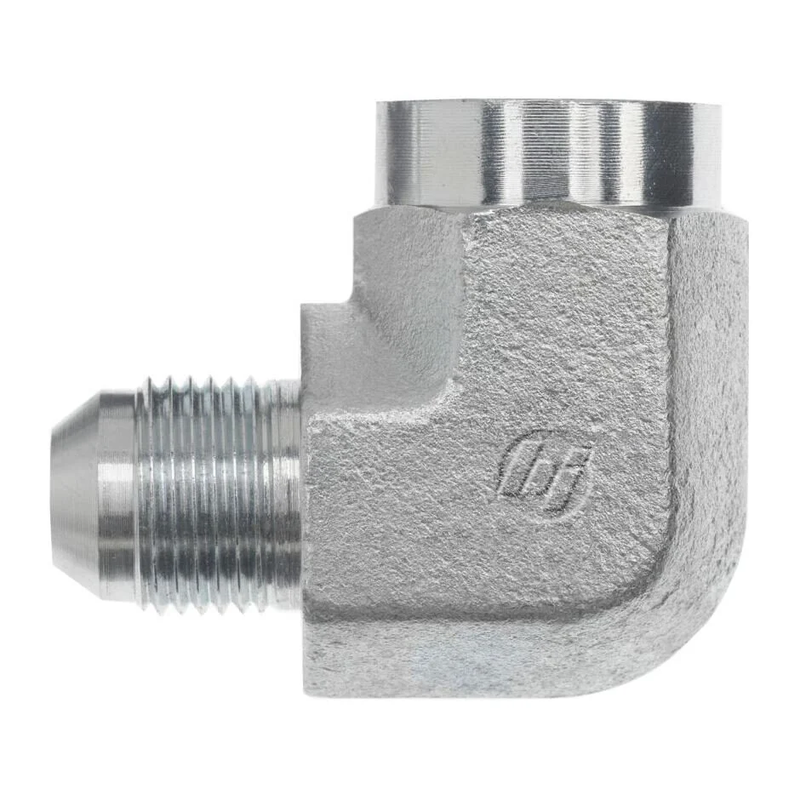

The Brennan 2502-12-12-FG is a high-pressure 3/4" MJIC x 3/4" FNPT 90° elbow, built for demanding hydraulic applications that require strong, leak-free flow directional changes. Designed with a 1-1/16-12 male JIC 37° flare and a 3/4-14 female NPTF port, this fitting provides secure, reliable connections that meet SAE standards. Manufactured from forged steel and finished with Cr3 plating, it delivers excellent durability and corrosion resistance. With a working pressure of up to 4000 PSI, this elbow is ideal for industrial, heavy-equipment, and high-vibration environments.
Fitting Chart- 3/4" MJIC (1-1/16-12) x 3/4" FNPT 90° hydraulic elbow
- Forged steel construction for superior strength and long service life
- Precision JIC 37° flare and NPTF threads ensure secure, leak-free sealing
- Cr3 plating for enhanced corrosion resistance
- Supports high-pressure hydraulic systems up to 4000 PSI
- Compact design with 1.89" centerline length for efficient routing in tight spaces
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.312 |
| Overall Length L In | 1.36 |
| Centerline Length M In | 1.89 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.7467 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 6.734 |
