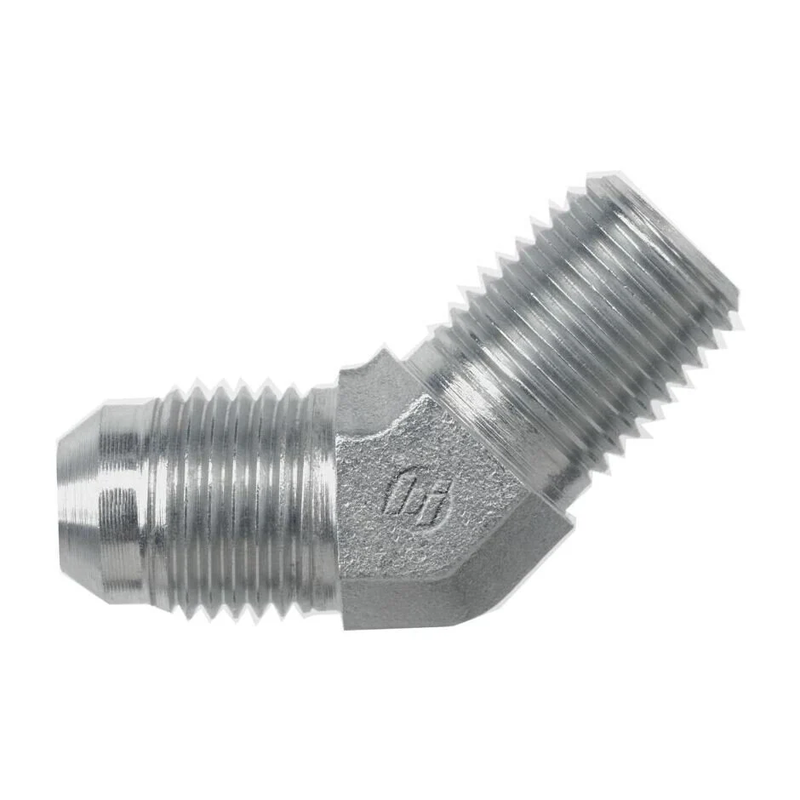

This 3/8" MJIC X 3/8" MNPT 45° elbow fitting is engineered for high-pressure hydraulic systems, offering a reliable and secure connection between JIC and NPT threads. Crafted from durable steel with Cr3 plating, it ensures long-lasting performance and corrosion resistance. The 45-degree design allows for versatile routing in tight spaces, making it ideal for fluid transfer, hydraulic machinery, and industrial applications. Compact and precise, it delivers dependable sealing even under demanding conditions.
Fitting Chart- High-quality steel construction with Cr3 plating for corrosion resistance and durability
- 45° angled design allows easy installation in tight spaces and optimizes hydraulic flow
- Compatible with 3/8" JIC and 3/8" NPT threads for a secure, leak-free connection
- Rated for pressures up to 6,000 PSI, suitable for demanding hydraulic applications
- Hex body design enables quick and easy tightening with standard tools
- Ideal for industrial, automotive, and fluid transfer systems, providing reliable performance
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 0.95 |
| Centerline Length M In | 0.87 |
| Shape | 45 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.118 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 1.809 |
