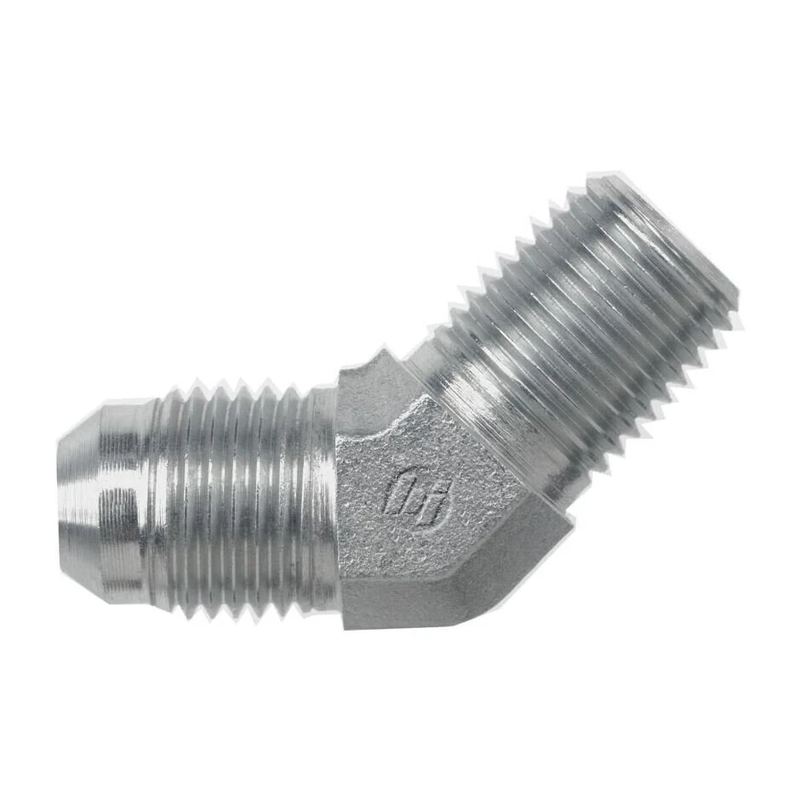

This high-pressure 45° elbow fitting is designed to provide a secure, leak-resistant connection between 1/2" JIC and 1/2" NPT threaded components. Crafted from durable steel with corrosion-resistant Cr3 plating, it ensures long-lasting performance even in demanding hydraulic systems. Its angled design allows for easy routing in tight spaces, making installation simple and efficient. Ideal for industrial, automotive, and fluid transfer applications, this fitting delivers reliable operation under high-pressure conditions.
Fitting Chart- Durable steel construction with corrosion-resistant Cr3 plating
- 45° angle design allows flexible installation in compact areas
- Leak-resistant connection compatible with 1/2" JIC and 1/2" NPT threads
- Rated for pressures up to 6,000 PSI, suitable for demanding hydraulic systems
- Hex body enables quick and easy tightening with standard tools
- Ideal for industrial, automotive, and fluid transfer applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.17 |
| Centerline Length M In | 0.99 |
| Shape | 45 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.192 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 3.038 |
