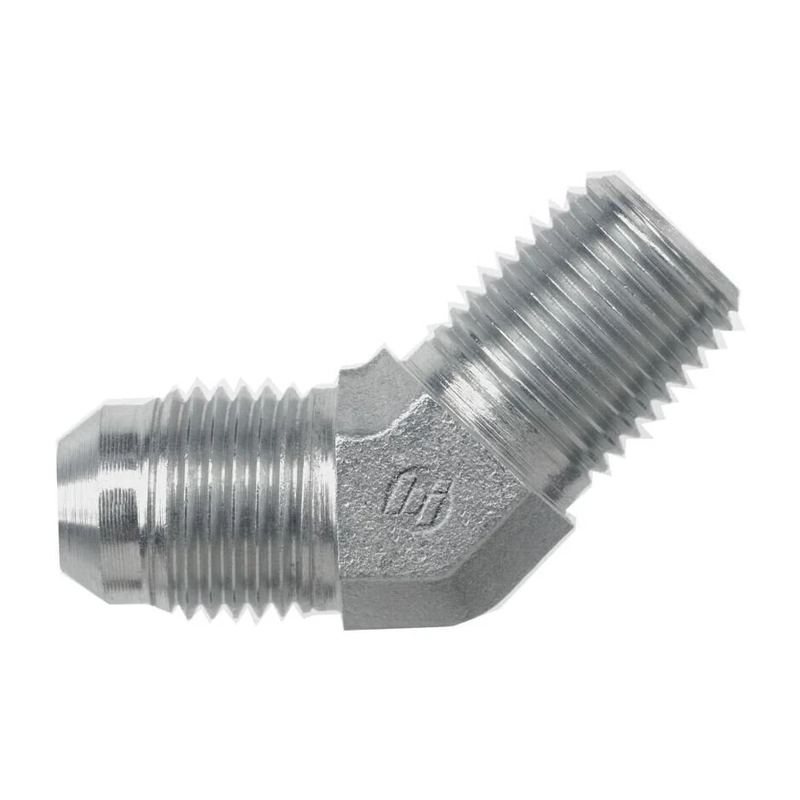

Upgrade your hydraulic system with this precision-engineered 45° elbow fitting, designed to connect 12 MJIC and 3/4" NPT threads effortlessly. Crafted from high-strength steel and finished with corrosion-resistant Cr3 plating, it delivers reliable performance even in demanding environments. The 45-degree angled design ensures smooth fluid flow while making installation in tight or complex layouts easy and efficient. Perfect for industrial machinery, automotive hydraulics, and fluid transfer systems, this fitting withstands pressures up to 5000 PSI. Its durable hex body allows for easy tightening with standard tools, minimizing installation time. With this fitting, you get a combination of durability, precision, and reliability in one compact component.
Fitting Chart- High-quality steel construction with corrosion-resistant Cr3 plating
- 45° elbow design for efficient fluid routing in confined spaces
- Compatible with 1/2" MJIC and 3/4" NPT threads for versatile applications
- Handles pressures up to 5,000 PSI, ideal for demanding hydraulic systems
- Hex body allows easy tightening with standard wrenches
- Suitable for industrial, automotive, and fluid transfer systems, ensuring dependable operation
- Compact yet robust design for long-lasting reliability and performance
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.062 |
| Overall Length L In | 1.2 |
| Centerline Length M In | 1.28 |
| Shape | 45 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.318 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 4.559 |
