Brennan Industries of Texas

2603-04-04-04-FG

2603-04-04-04-FG

Regular price $9.31 USD
Regular price Sale price $9.31 USD
Sale Sold out
  • Manufacturer Part #2603-04-04-04-FG
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

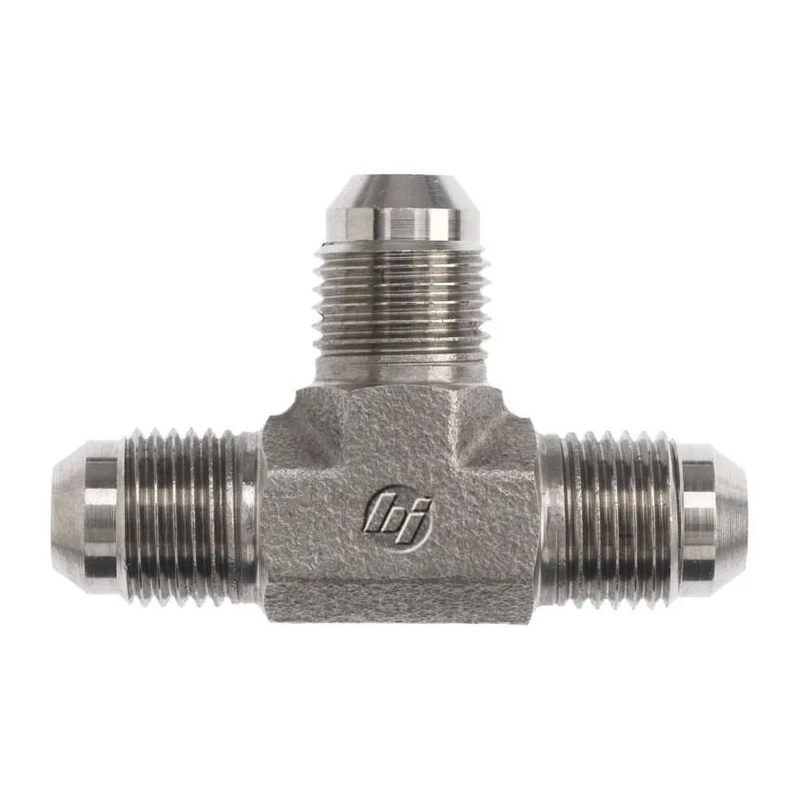

The Brennan Industries #4 MJIC x #4 MJIC x #4 MJIC Tee hydraulic fitting offers a durable and reliable solution for hydraulic system connections. Crafted from high-quality steel forging, this tee fitting features three male JIC SAE 37-degree flare threads sized at 7/16-20. It is designed to withstand a maximum dynamic pressure of 7,500 PSI, ensuring performance under demanding conditions. The fittings compact shape and Cr3 plating provide corrosion resistance and long-lasting service. Ideal for precise hydraulic applications requiring secure three-way connections.

  • Three Male JIC SAE 37 flare threads, size 7/16-20
  • Steel forging construction for strength and durability
  • Cr3 plating enhances corrosion resistance
  • Maximum dynamic pressure rating of 7,500 PSI
  • Compact tee design with precise dimensional specs
  • Meets SAE J514 thread specifications
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 7/16-20
Thread B1 Drill In 0.172 in.
Thread B1 Specification SAE J514
Thread B2 Type Male JIC SAE 37 Degree Flare
Thread B2 Size 7/16-20
Thread B2 Drill In 0.172 in.
Thread B2 Specification SAE J514
Thread 3 Type Male JIC SAE 37 Degree Flare
Thread 3 Size 7/16-20
Thread 3 Drill In 0.172 in.
Thread 3 Specification SAE J514
Body Hex in. 0.438
Overall Length L in. 1.78
Overall Length L2 in. 0.89
Centerline Length M in. 0.89
Centerline Length M2 in. 0.89
Shape Tee
Body Material Steel
Raw Material Type Steel Forging
Plating Cr3
Weight lbs 0.07
Maximum Dynamic Pressure psi 7500
California Residents Prop-65 Warning
Cubic in. (L W H) 0.865
