Brennan Industries of Texas

2603-08-08-06-FG

2603-08-08-06-FG

Regular price $31.89 USD
Regular price Sale price $31.89 USD
Sale Sold out
  • Manufacturer Part #2603-08-08-06-FG
  • Unit Size 1
  • Brand Brennan Industries of Texas

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

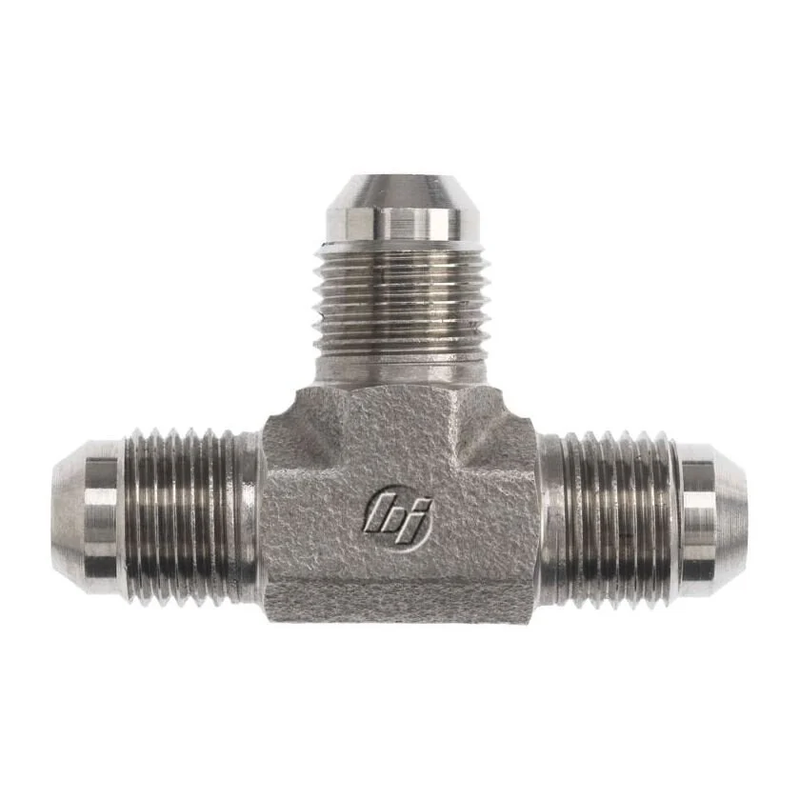

The Brennan Industries #8 MJIC x #8 MJIC x #6 MJIC Tee hydraulic fitting is designed for versatile and secure hydraulic system connections. Made from robust steel forging and finished with Cr3 plating, this fitting features three male JIC SAE 37-degree flare threads sized 3/4-16 for two ports and 9/16-18 for the third. It supports a maximum dynamic pressure of 6,000 PSI, suitable for high-pressure hydraulic applications. The tee configuration provides reliable three-way fluid flow control with precise dimensions for easy integration.

  • Precision-engineered for leak-free hydraulic connections
  • High-strength steel body ensures durability under demanding conditions
  • Compact design for space-efficient hydraulic system layouts
  • Suitable for industrial and mobile hydraulic applications
  • Easy installation with standardized SAE J514 threading
Thread B1 Type Male JIC SAE 37 Degree Flare
Thread B1 Size 3/4-16
Thread B1 Drill In 0.391 in.
Thread B1 Specification SAE J514
Thread B2 Type Male JIC SAE 37 Degree Flare
Thread B2 Size 3/4-16
Thread B2 Drill In 0.391 in.
Thread B2 Specification SAE J514
Thread 3 Type Male JIC SAE 37 Degree Flare
Thread 3 Size 9/16-18
Thread 3 Drill In 0.297 in.
Thread 3 Specification SAE J514
Body Hex in. 0.75
Overall Length L in. 2.5
Overall Length L2 in. 1.14
Centerline Length M in. 1.25
Centerline Length M2 in. 1.25
Shape Tee
Body Material Steel
Raw Material Type Steel Forging
Plating Cr3
Weight lbs 0.2437
Maximum Dynamic Pressure psi 6000
California Residents Prop-65 Warning
Cubic in. (L  W  H) 2.841
