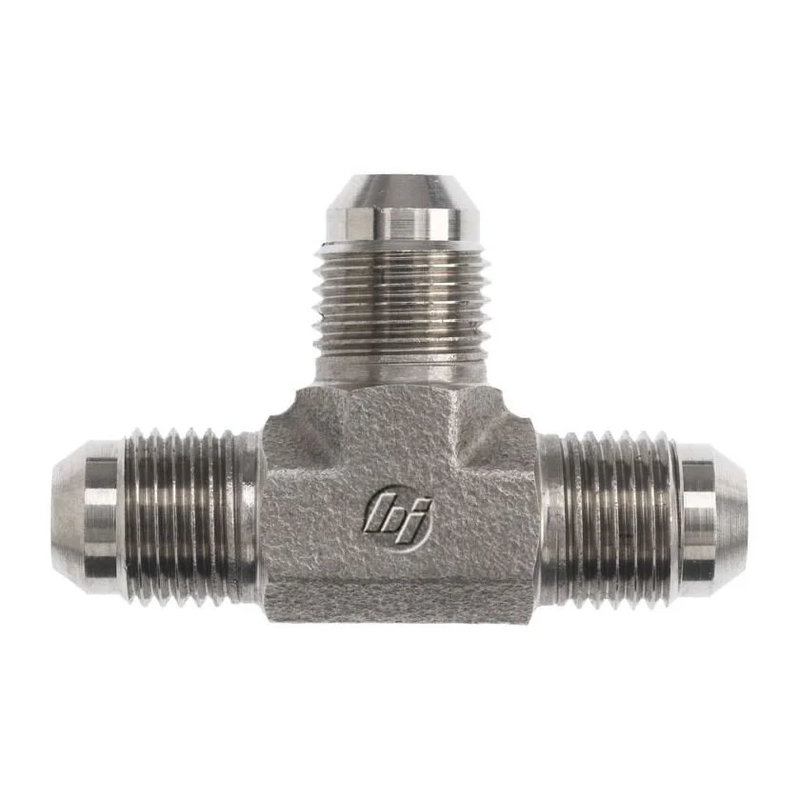

The Brennan Industries #8 MJIC x #8 MJIC x #8 MJIC Tee hydraulic fitting is designed for robust and reliable fluid connections in hydraulic systems. Manufactured from high-quality steel forging, this tee features three male JIC SAE 37-degree flare threads for secure, leak-resistant sealing. The compact design and chromium plating enhance corrosion resistance and durability. Ideal for demanding industrial and mobile hydraulic applications, it supports a maximum dynamic pressure of 6000 PSI. This fitting ensures dependable performance where precision and strength are critical.
- Three male JIC SAE 37-degree flare threads (3/4-16 size)
- High-strength steel forging for long-lasting durability
- Chromium plating (Cr3) for corrosion resistance
- Maximum dynamic pressure rating of 6000 PSI
- Compact and efficient tee shape for versatile hydraulic routing
- Lightweight design at 0.262 lbs for ease of installation
- Compliant with Prop 65 safety standards for California residents
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 in. |
| Thread B2 Specification | SAE J514 |
| Thread 3 Type | Male JIC SAE 37 Degree Flare |
| Thread 3 Size | 3/4-16 |
| Thread 3 Drill In | 0.391 in. |
| Thread 3 Specification | SAE J514 |
| Body Hex in. | 0.75 |
| Overall Length L in. | 2.5 |
| Overall Length L2 in. | 1.25 |
| Centerline Length M in. | 1.25 |
| Centerline Length M2 in. | 1.25 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.262 |
| Maximum Dynamic Pressure psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L W H) | 3.047 |
