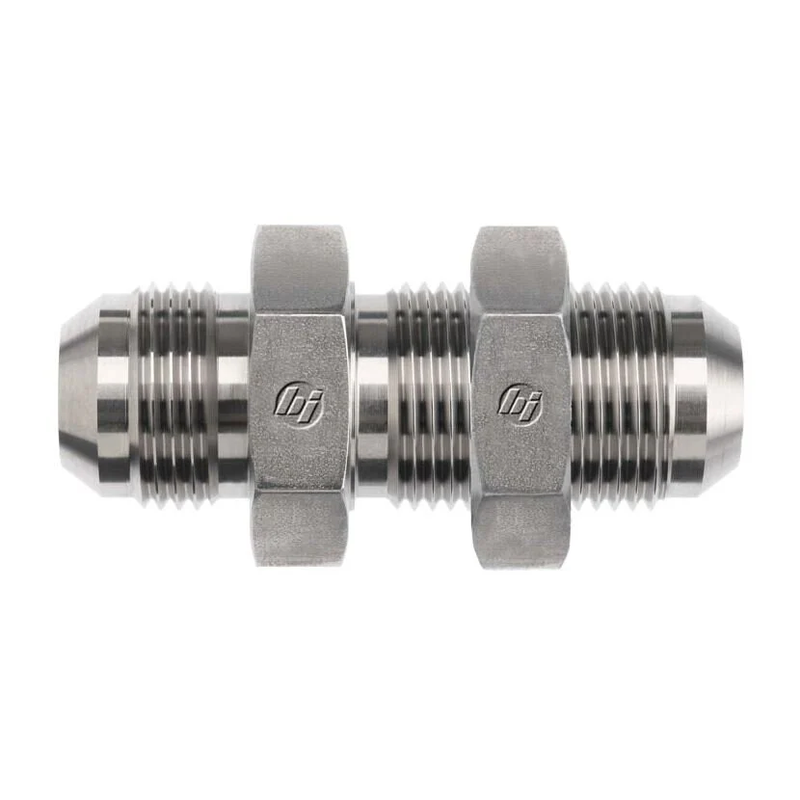

The Brennan Industries #6 MJIC x #6 MJIC straight hydraulic fitting with locknut is engineered for precise and secure fluid connections in hydraulic systems. Featuring male JIC SAE 37-degree flare threads on both ends, this fitting provides excellent sealing performance. Constructed from durable steel with chromium plating for enhanced corrosion resistance, it includes a locknut for added stability and vibration resistance. Ideal for industrial and mobile hydraulic applications, it offers reliability and strength in a compact design.
- Manufactured from forged steel ensuring high strength and durability
- Precise threading following SAE J514 standards for reliable sealing
- Compatible with hydraulic systems requiring high-pressure resistance
- Overall length of 2.18 in. for compact installation in tight spaces
- Suitable for applications involving vibration due to locknut securing mechanism
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 in. |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-06 |
| Body Hex in. | 0.812 |
| C Hex 1 in. | 0.812 |
| Overall Length L in. | 2.18 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.1417 |
