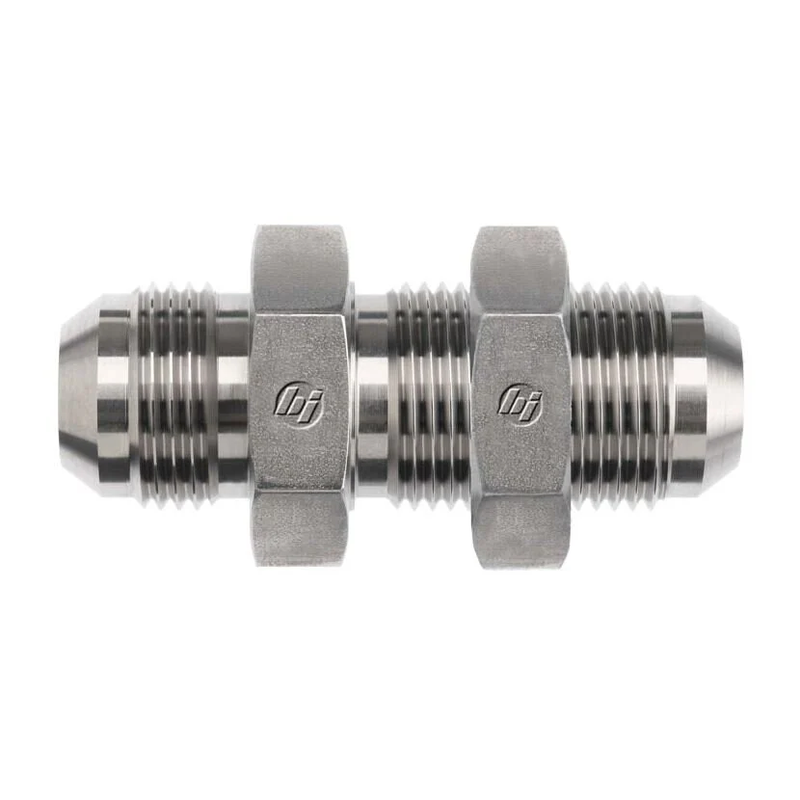

The Brennan Industries hydraulic fitting features a straight design with #8 MJIC male JIC SAE 37° flare connections on both ends, engineered for reliable and leak-free performance. Constructed from forged steel, this fitting ensures high durability and strength for demanding hydraulic applications. It includes a locknut for secure installation and resistance to vibration. Finished with corrosion-resistant Cr3 plating, it offers long-lasting protection against wear. Compact with a 2.44-in. overall length and 1-in. hex size, it is ideal for precise and efficient system assembly.
- Male JIC SAE 37° flare threads on both ends
- Forged steel construction for enhanced strength and durability
- Locknut included for secure, vibration-resistant installation
- Corrosion-resistant Cr3 plating for extended service life
- Overall length of 2.44 in. with 1-in. hex size for easy wrenching
- Designed to meet SAE J514 threading standards
| Thread B1 Type | Male JIC SAE 37° Flare |
| Thread B1 Size | 3/4–16 |
| Thread B1 Drill In | 0.391 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37° Flare |
| Thread B2 Size | 3/4–16 |
| Thread B2 Drill In | 0.391 in. |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-08 |
| Body Hex in. | 1 |
| C Hex 1 in. | 1 |
| Overall Length L in. | 2.44 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight lbs | 0.246 |
