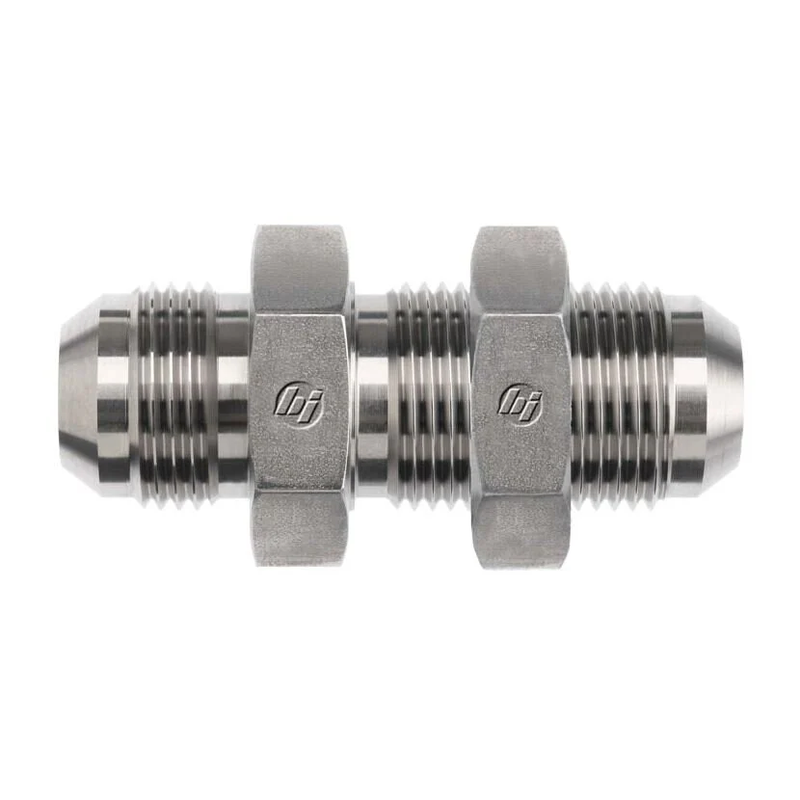

The Brennan Industries hydraulic fitting is designed with a straight configuration featuring #12 MJIC male JIC SAE 37-degree flare threads on both ends. Crafted from forged steel, this fitting offers exceptional strength and durability for heavy-duty hydraulic systems. It includes a locknut to ensure secure and vibration-resistant installation. The Cr3 plating provides excellent corrosion resistance for long-lasting performance. With a 3.09-in. overall length and 1.375-in. hex size, this fitting allows for easy assembly and maintenance in demanding environments.
- Male JIC SAE 37-degree flare threads on both ends
- Forged steel construction for superior durability
- Locknut included for secure and stable installation
- Corrosion-resistant Cr3 plating for enhanced longevity
- Overall length of 3.09 in. with 1.375-in. hex size for easy wrenching
- Manufactured to SAE J514 standards
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 1-1/16-12 |
Thread B1 Drill In | 0.609 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male JIC SAE 37 Degree Flare |
Thread B2 Size | 1-1/16-12 |
Thread B2 Drill In | 0.609 in. |
Thread B2 Specification | SAE J514 |
Thread 4 Specification | Locknut 0306-12 |
Body Hex in. | 1.375 |
C Hex 1 in. | 1.375 |
Overall Length L in. | 3.09 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight lbs | 0.593 |
