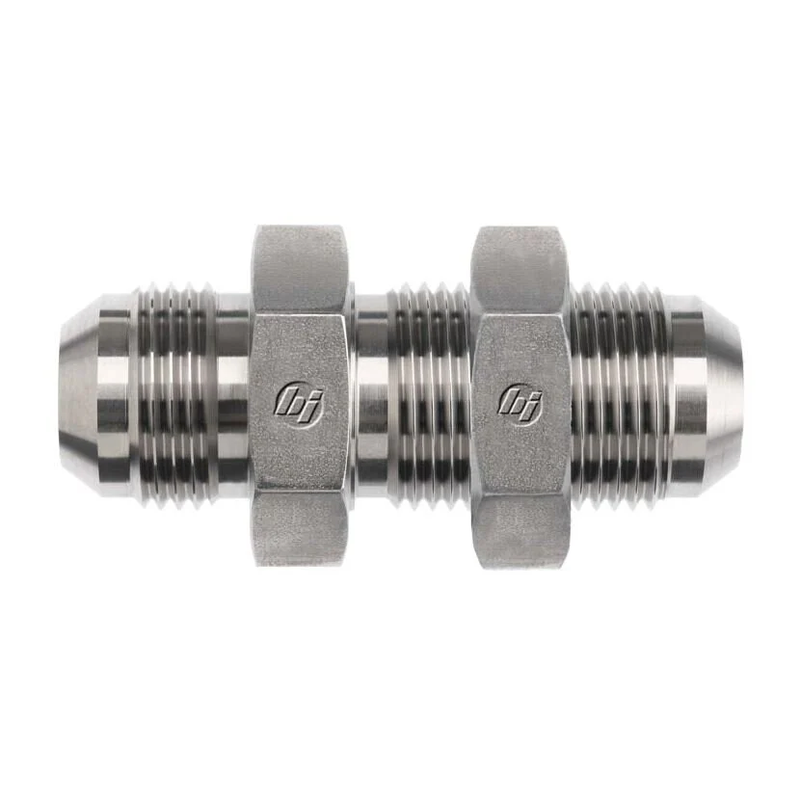

The Brennan Industries hydraulic fitting features a straight design with #16 MJIC male JIC SAE 37-degree flare threads on both ends, ensuring reliable connections in hydraulic systems. Made from high-quality forged steel, this fitting guarantees strength and durability under high pressure. It includes a locknut for secure installation and resistance to loosening due to vibration. The corrosion-resistant Cr3 plating extends the fitting's service life. With a 3.14-in. overall length and 1.625-in. hex size, this fitting offers ease of installation and maintenance in industrial applications.
- Male JIC SAE 37-degree flare threads on both ends
- Forged steel construction for maximum durability
- Includes locknut for secure and vibration-resistant fitting
- Corrosion-resistant Cr3 plating for extended longevity
- Overall length of 3.14 in. and 1.625-in. hex size for convenient wrenching
- Meets SAE J514 standards for quality and performance
| Thread B1 Type | Male Jic Sae 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | Sae J514 |
| Thread B2 Type | Male Jic Sae 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | Sae J514 |
| Thread 4 Specification | Locknut 0306-16 |
| Body Hex In | 1.625 |
| C Hex 1 In | 1.625 |
| Overall Length L In | 3.14 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.7799 |
| California Residents | Prop-65 Warning |
