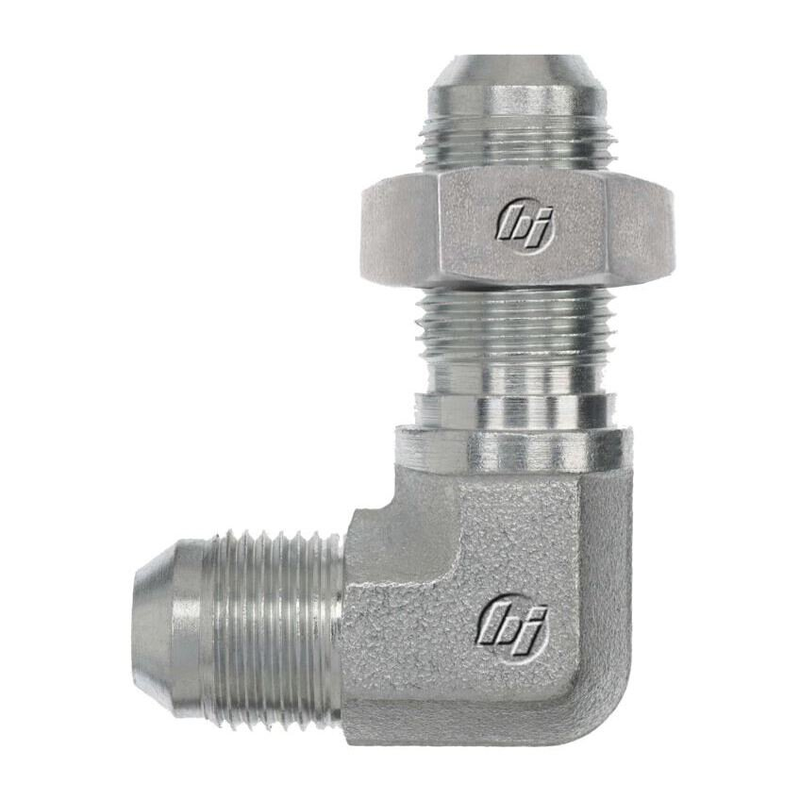

The Brennan Industries hydraulic fitting is a 90-degree elbow featuring #6 MJIC male JIC SAE 37-degree flare threads on both ends. Constructed from forged steel, it offers exceptional strength and durability for demanding hydraulic applications. The fitting includes a locknut to ensure a secure, vibration-resistant connection. Finished with corrosion-resistant Cr3 plating, it is designed for long-lasting performance in harsh environments. With a compact overall length of 1.81 in. and a body hex size of 0.562 in., it provides easy installation and reliable sealing.
- 90-degree elbow design with male JIC SAE 37-degree flare threads
- Forged steel construction for high strength and durability
- Equipped with a locknut for secure and vibration-resistant connection
- Corrosion-resistant Cr3 plating for enhanced longevity
- Compact overall length of 1.81 in. for tight spaces
- Body hex size of 0.562 in. for easy wrenching
- Meets SAE J514 standards for quality and performance
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 9/16-18 |
Thread B1 Drill In | 0.297 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male JIC SAE 37 Degree Flare |
Thread B2 Size | 9/16-18 |
Thread B2 Drill In | 0.297 in. |
Thread B2 Specification | SAE J514 |
Thread 4 Specification | Locknut 0306-06 |
Body Hex in. | 0.562 |
C Hex 1 in. | 0.812 |
Overall Length L in. | 1.81 |
Centerline Length M in. | 1.09 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.163 |
