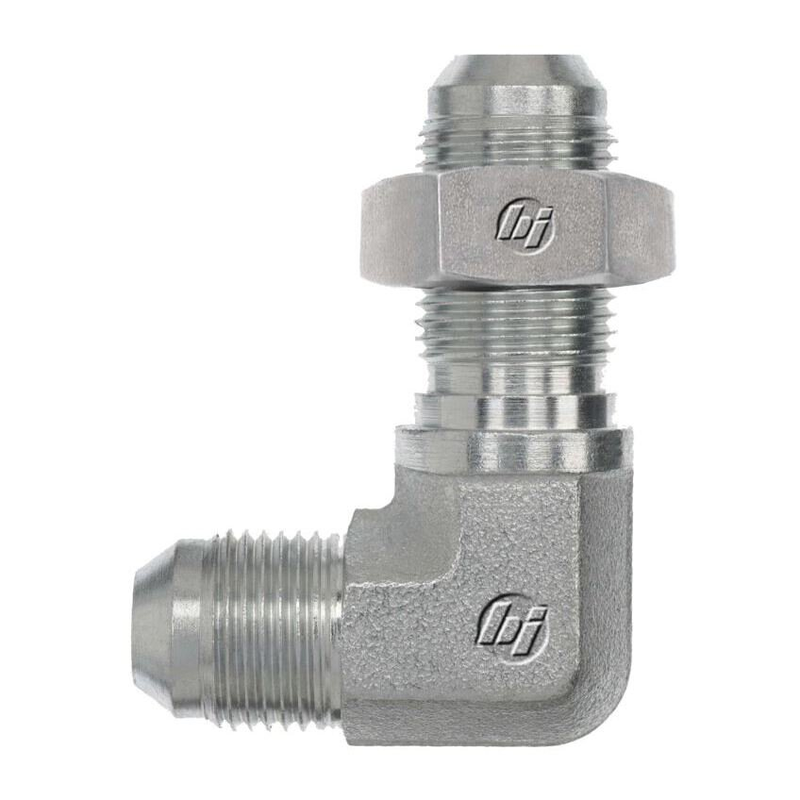

This 90-degree bulkhead elbow hydraulic fitting is crafted from durable steel forging with a corrosion-resistant Cr3 plating for enhanced longevity. Designed with dual Male JIC SAE 37 flare threads (3/4-16) on both ends, it ensures secure and leak-resistant connections. The fitting includes a locknut for reliable installation and features a compact build with a centerline length of 1.36 in., ideal for tight-space hydraulic applications.
- Dual Male JIC SAE 37 Flare Threads (3/4-16)
- Made from high-strength steel forging with Cr3 plating
- 90 elbow shape for space-saving installations
- Includes Locknut (0306-08) for secure mounting
- Complies with SAE J514 standard
- Overall length: 2.11 in | Centerline: 1.36 in | Weight: 0.3315 lbs
- Precision-machined threads ensure leak-free connections under pressure
- Ideal for use in fluid transfer, hydraulic, and industrial applications
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 3/4-16 |
Thread B1 Drill In | 0.391 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male JIC SAE 37 Degree Flare |
Thread B2 Size | 3/4-16 |
Thread B2 Drill In | 0.391 in. |
Thread B2 Specification | SAE J514 |
Thread 4 Specification | Locknut 0306-08 |
Body Hex in. | 0.75 |
C Hex 1 in. | 1 |
Overall Length L in. | 2.11 |
Centerline Length M in. | 1.36 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.3315 |
