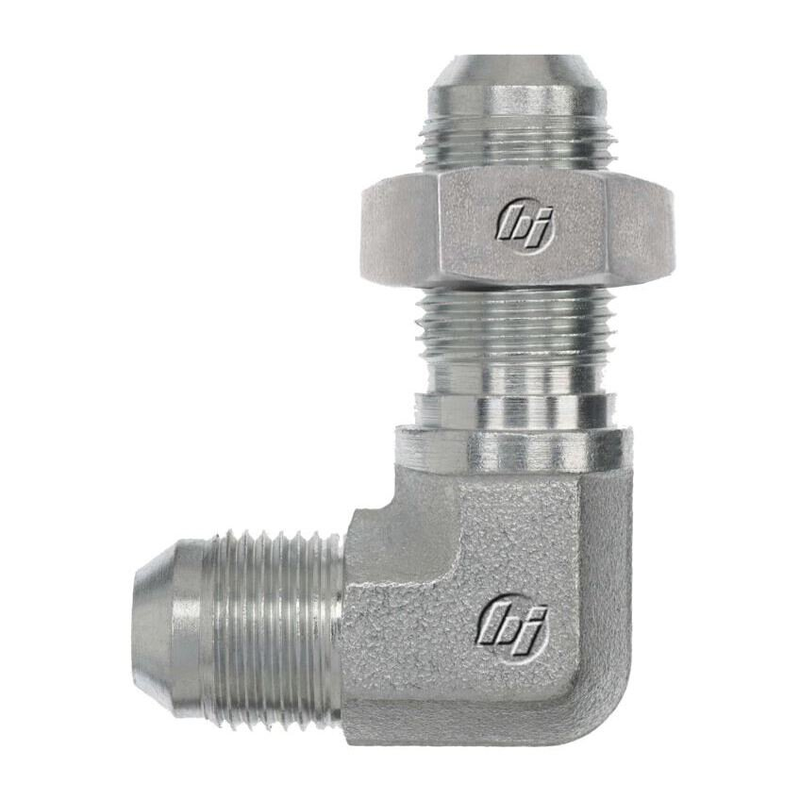

This 90-degree bulkhead elbow hydraulic fitting is designed for heavy-duty fluid transfer and high-pressure applications. With 7/8-14 Male JIC SAE 37 flare threads on both ends, it ensures secure and leak-resistant connections. Constructed from forged steel and protected with a Cr3 plating, this fitting offers enhanced strength, durability, and corrosion resistance. Its compact 90-degree design and included Locknut (0306-10) make it ideal for panel-mounted or tight-space installations.
- Dual Male JIC SAE 37 Flare Threads (7/8-14) for secure, high-pressure connections
- Forged steel body offers exceptional durability and mechanical strength
- Corrosion-resistant Cr3 plating ensures long-lasting performance in harsh environments
- 90 elbow bulkhead configuration optimizes space and improves routing efficiency
- Includes Locknut (0306-10) for easy and stable panel or enclosure mounting
- Suitable for use in industrial machinery, construction equipment, and hydraulic systems
- Meets California Prop-65 regulations with appropriate warning for compliance
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/8-14 |
Thread B1 Drill In | 0.484 in. |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male JIC SAE 37 Degree Flare |
Thread B2 Size | 7/8-14 |
Thread B2 Drill In | 0.484 in. |
Thread B2 Specification | SAE J514 |
Thread 4 Specification | Locknut 0306-10 |
Body Hex in. | 0.875 |
C Hex 1 in. | 1.125 |
Overall Length L in. | 2.39 |
Centerline Length M in. | 1.56 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight lbs | 0.514 |
California Residents | Prop-65 Warning |
