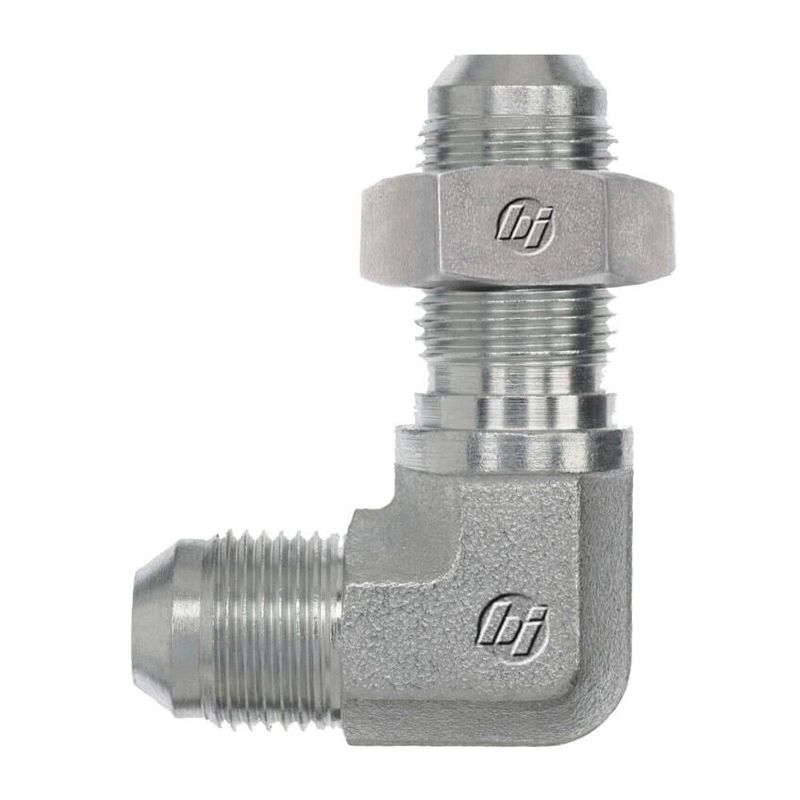

This 90-degree bulkhead elbow fitting is built for high-performance hydraulic systems requiring robust and secure connections. Featuring 1-1/16-12 Male JIC SAE 37 flare threads on both ends, it is precision-engineered for reliability under pressure. Made from forged steel with a Cr3 finish, it offers superior strength and corrosion protection. The fitting comes complete with a Locknut (0306-12), making it ideal for mounting through panels or equipment walls in demanding environments.
- Precision 1-1/16-12 Male JIC SAE 37 Flare threads for leak-resistant fluid flow
- Bulkhead design with Locknut (0306-12) ensures rigid mounting in hydraulic panels
- Rugged steel forging enhances pressure resistance and mechanical durability
- Cr3 plating guards against rust and corrosion in industrial settings
- Engineered to SAE J514 specifications for consistent performance and fit
- Dimensions: Body Hex 1.062 in | C Hex 1.375 in | Length 2.67 in | Centerline 1.78 in
- Heavier-duty profile with a weight of 0.7625 lbs, suited for tough applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-1/16-12 |
| Thread B1 Drill In | 0.609 in. |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 in. |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-12 |
| Body Hex in. | 1.062 |
| C Hex 1 in. | 1.375 |
| Overall Length L in. | 2.67 |
| Centerline Length M in. | 1.78 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight lbs | 0.7625 |
