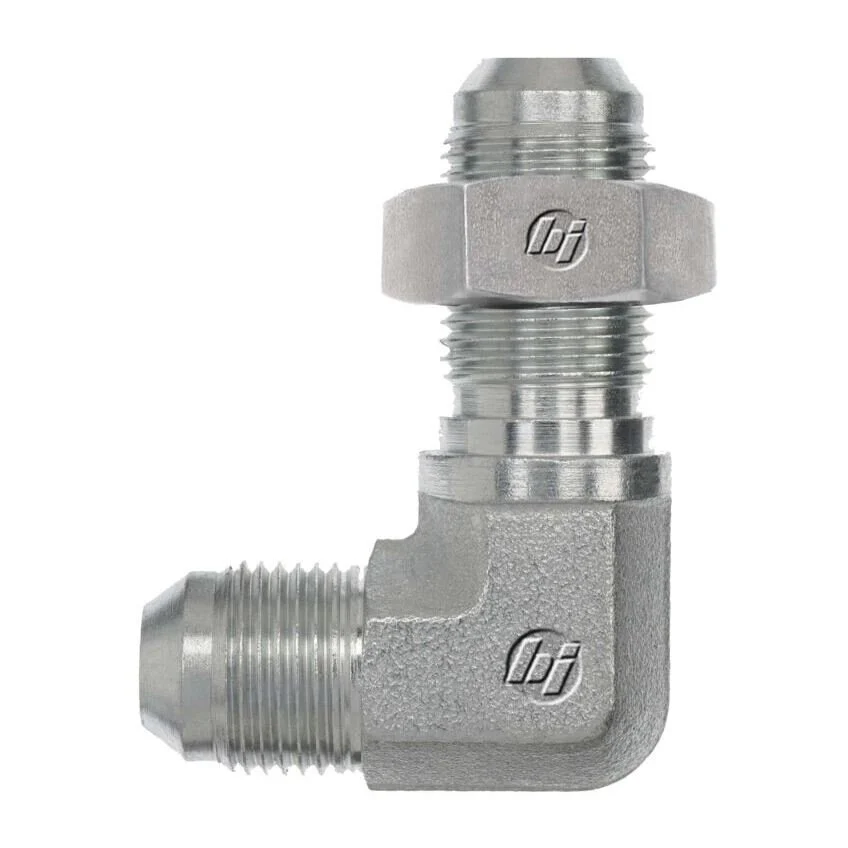

The Brennan 2701-LN-20-20-FG is a heavy-duty 1-1/4" MJIC x 1-1/4" MJIC 90° bulkhead elbow with locknut, engineered for demanding high-pressure hydraulic applications. Built from durable steel forging, it ensures exceptional strength, corrosion resistance, and long-lasting performance. The 37° SAE J514 flare design delivers secure, leak-free connections even in extreme environments. Its compact 90-degree bend allows efficient installation in tight spaces while maintaining maximum flow integrity. Ideal for industrial machinery, mobile hydraulics, and custom hydraulic system builds.
Fitting Chart- Heavy-duty 1-1/4" MJIC x 1-1/4" MJIC bulkhead elbow with locknut for secure installation
- 90° angle design for efficient routing in tight or restricted hydraulic spaces
- Constructed from steel forging for enhanced strength and high-pressure durability
- SAE J514 37° flare ensures reliable, leak-resistant connections
- Cr3 plating offers excellent corrosion protection and extended service life
- Ideal for industrial, mobile, and high-pressure hydraulic systems
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/8-12 |
| Thread B2 Drill In | 1.078 |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-20 |
| Body Hex In | 1.625 |
| C Hex 1 In | 1.875 |
| Overall Length L In | 3.12 |
| Centerline Length M In | 2.17 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 1.8415 |
