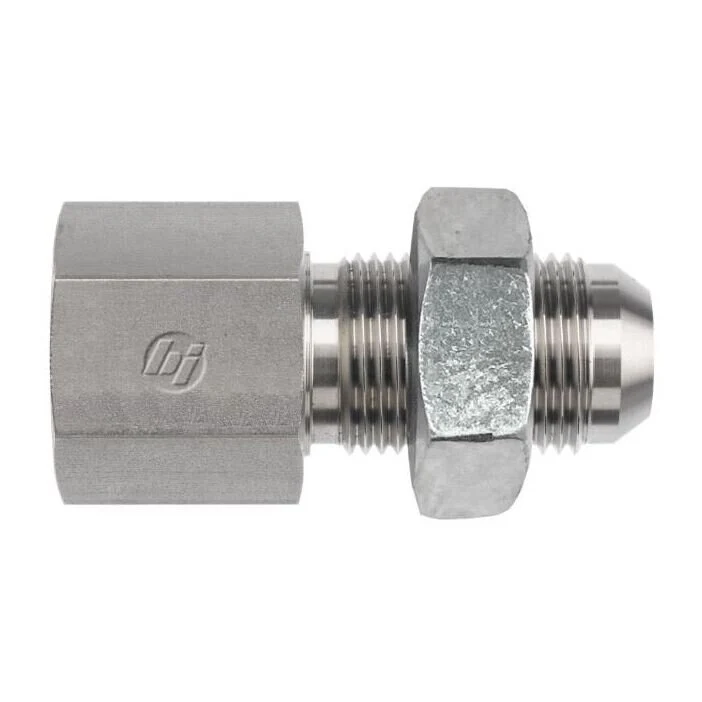

The 2705-LN-08-08 is a straight high-pressure hydraulic adapter designed to connect 1/2" FNPT to 1/2" MJIC (3/4-16) with a secure 37° flare. This fitting features a locknut assembly for added stability and precise alignment in hydraulic systems. Constructed from durable steel with Cr3 plating, it offers excellent corrosion resistance and long-term reliability. With a compact 2.61-inch overall length and 1.125-inch body hex, it is ideal for tight installations in industrial, mobile, and fluid power applications. Precision-engineered threads ensure leak-free, high-pressure performance.
Fitting Chart- 1/2" FNPT x 1/2" MJIC (3/4-16) straight hydraulic adapter
- Includes locknut for secure mounting and alignment
- High-strength steel body with Cr3 plating for corrosion resistance
- SAE J476 (NPTF) and SAE J514 (JIC) compliant for leak-free connections
- Compact 2.61" length and 1.125" hex for easy installation
- Ideal for high-pressure hydraulic systems and industrial equipment
| Specification | Details |
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-08 |
| Body Hex In | 1.125 |
| C Hex 1 In | 1 |
| Overall Length L In | 2.61 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.3617 |
