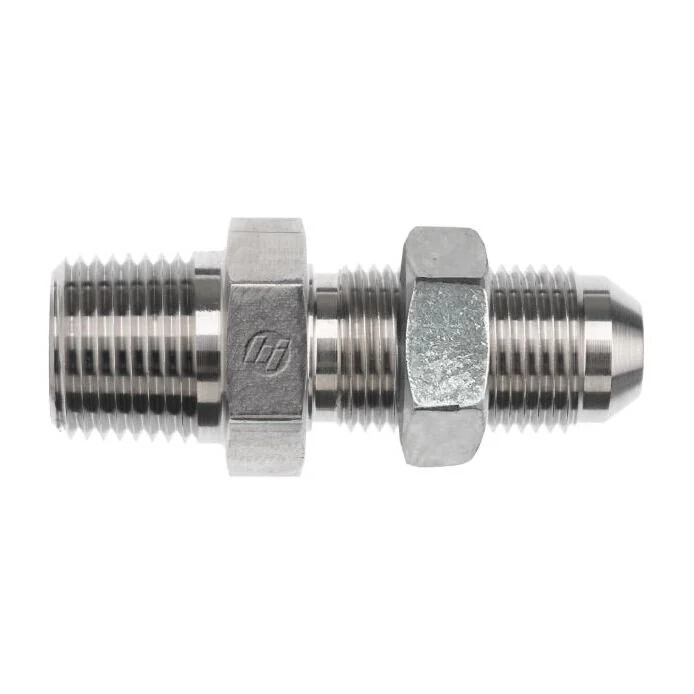

Ensure secure and reliable hydraulic connections with this 1" MJIC x 1" MNPT bulkhead fitting, complete with a sturdy locknut. Crafted from high-quality steel and finished with corrosion-resistant Cr3 plating, this fitting provides exceptional durability and longevity in demanding hydraulic systems. The bulkhead design allows for secure panel mounting while maintaining leak-free performance under high pressures. Precision-engineered threads 1-5/16-12 MJIC and 1" NPT ensure a tight, dependable fit. Ideal for industrial, automotive, and fluid transfer applications, this component delivers consistent performance in tight or challenging spaces. Its hex body design allows for easy installation with standard tools, making setup quick and efficient.
Fitting Chart- High-strength steel construction with corrosion-resistant Cr3 plating
- Designed for secure bulkhead installation with included locknut
- Compatible with 1" MJIC and 1" NPT threads for versatile hydraulic applications
- Handles high-pressure hydraulic systems reliably
- Hex body allows easy tightening and installation with standard wrenches
- Perfect for industrial, automotive, and fluid transfer systems, ensuring leak-free operation
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1-11-1/2 |
| Thread B1 Drill In | 0.938 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male JIC SAE 37 Degree Flare |
| Thread B2 Size | 1-5/16-12 |
| Thread B2 Drill In | 0.844 |
| Thread B2 Specification | SAE J514 |
| Thread 4 Specification | Locknut 0306-16 |
| Body Hex In | 1.625 |
| C Hex 1 In | 1.625 |
| Overall Length L In | 3.17 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.7799 |
| California Residents | Prop-65 Warning |
